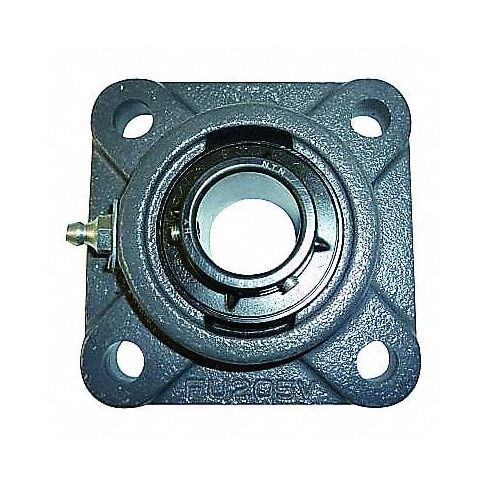

4 Bolt Flng Brg Radial Ball 1 7/8in Bore MPN:UCFU-1.7/8M
4 Bolt Flng Brg Radial Ball 1 7/8in Bore
The four-bolt flange radial ball bearing with a bore size of 1 7/8 inches is a popular choice for various power tools and accessories that require smooth and dependable rotation. This high-quality component helps to distribute load evenly while reducing friction, thus prolonging the life of equipment used in woodworking or metalworking shops, machine tool applications, construction sites, and other industrial settings. The self-lubricating properties and excellent corrosion resistance make this ball bearing a reliable choice for both indoor and outdoor machinery, ensuring maximum productivity across an extensive range of tools and equipment used in diverse industries.
Mounted Ball Bearings• Temp. range: -20° to 250°FFeature cast-iron housings. Elastomeric seal with flinger preserves lubricant and keeps contaminants out. Ultra-Class units have solid base construction for optimum load and shock stability and black oxide coating for superior environmental protection.
Technical Specifications
- Item 4-Bolt Flange Bearing
- Mounted Bearing Item 4-Bolt Flange Bearing
- Bearing Insert Type Ball
- Bore Dia. 1 7/8 in
- Shaft Locking Type Set Screw
- Bearing Housing Material Type Cast Iron
- Bearing Insert Material 52100 Chrome Steel
- Bolt Hole Center-to-Center 4 3/8 in
- Series Standard Duty
- Bolt Size 5/8 in
- Overall Height 2 25/64 in
- Overall Width 5 21/32 in
- Overall Length 5 21/32 in
- Bearing Lubrication Shell Alvania #3 or NLGI #3 Equivalent
- Dynamic Load Capacity 7,900 lb
- Static Load Capacity 5,200 lb
- Temp. Range -20 Degrees to 250 Degrees F
- Finish Painted
- Dimension A 1 13/16 in
- Dimension Ao 2 25/64 in
- Dimension B 2 1/32 in
- Dimension D 1 7/8 in
- Dimension J 4 3/8 in
- Dimension L 5 21/32 in
- Dimension N 43/64 in
- Dimension S 3/4 in
Manufacturer Details
- Manufacturer: NTN
- Condensed Mfg Number: UCFU178M
- MPN: UCFU-1.7/8M
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: JP
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483204040
- GDS Category Name: Flange Mount Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171501
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Flanged bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 3, 2024 10:15pm UTC
Category: Bearings
