2 Bolt Flng Brg Radial Ball 1 3/4in Bore MPN:UCFLUX-1.3/4M
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXO-5RYJ2

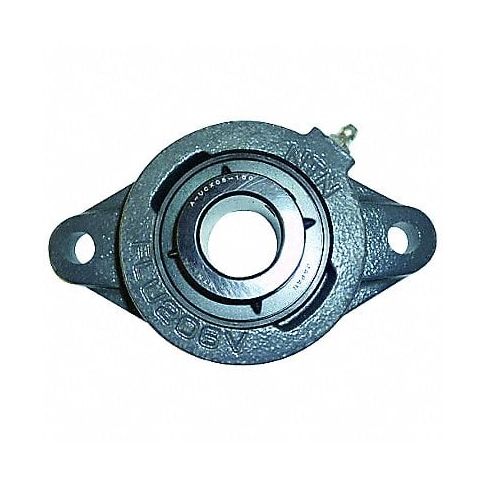

2 Bolt Flng Brg Radial Ball 1 3/4in Bore
Our premium 2-bolt flanging radial ball bearing is designed for high performance with superior durability, reducing downtime during prolonged usage; ideal for heavy-duty applications subject to unmatched precision, offering enhanced quality perfect companion suitable cost-effective nature, suitable for various industries requiring consistent results offering superior results reducing user fatigue. The bearing has a bore size of 1 3/4 inches and features radial ball bearings with self-lubricating technology guaranteeing corrosion resistance, ideal for customers needing efficient solutions catering prolonged usage backed by manufacturer warranty.
Mounted Ball Bearings• Temp. range: -20° to 250°FFeature cast-iron housings. Elastomeric seal with flinger preserves lubricant and keeps contaminants out. Ultra-Class units have solid base construction for optimum load and shock stability and black oxide coating for superior environmental protection.
Technical Specifications
- Item 2-Bolt Flange Bearing
- Mounted Bearing Item 2-Bolt Flange Bearing
- Bearing Insert Type Ball
- Bore Dia. 1 3/4 in
- Shaft Locking Type Set Screw
- Bearing Housing Material Type Cast Iron
- Bearing Insert Material 52100 Chrome Steel
- Bolt Hole Center-to-Center 6 3/16 in
- Series Medium Duty
- Bolt Size 9/16 in
- Overall Height 2 25/64 in
- Overall Width 4 9/16 in
- Overall Length 7 15/32 in
- Bearing Lubrication Shell Alvania #3 or NLGI #3 Equivalent
- Dynamic Load Capacity 7,900 lb
- Static Load Capacity 5,200 lb
- Temp. Range -20 Degrees to 250 Degrees F
- Finish Painted
- Dimension A 1 13/16 in
- Dimension Ao 2 25/64 in
- Dimension B 2 1/32 in
- Dimension D 1 3/4 in
- Dimension H 7 15/32 in
- Dimension J 6 3/16 in
- Dimension L 4 9/16 in
- Dimension N 43/64 in
- Dimension S 3/4 in
Manufacturer Details
- Manufacturer: NTN
- Condensed Mfg Number: UCFLUX134M
- MPN: UCFLUX-1.3/4M
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: JP
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483204040
- GDS Category Name: Flange Mount Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171511
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 11
- UNSPSC Commodity Name: Pillow block bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
