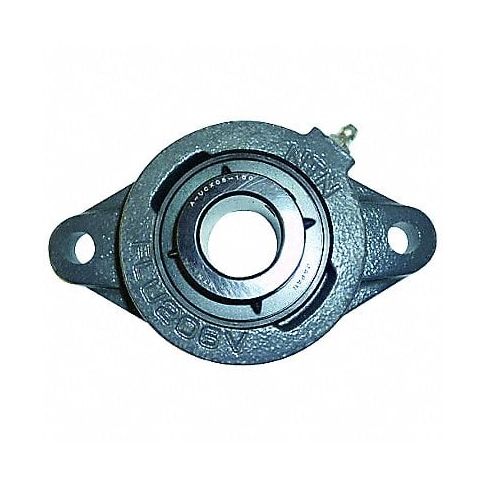

2 Bolt Flng Brg Radial 1 3/16in Bore MPN:UCFLUX-1.3/16M
SKU
226-CXO-5RYJ1
2 Bolt Flng Brg Radial 1 3/16in Bore
Upgrade your machinery with our reliable 2 Bolt Flange Bearing - Radial, 1-3/16 Bore, Steel. Made from robust materials, this bearing is designed to provide consistent performance under heavy load while ensuring longevity in various applications such as agriculture, mining, and manufacturing industries. Its two-bolt flange ensures secure attachment to the shaft while reducing play and vibration. Additionally, its sturdy construction minimizes friction for smooth operation and low maintenance requirements. Invest in our top-quality radial flange bearing today and improve the efficiency of your power transmission systems!
Mounted Ball Bearings• Temp. range: -20° to 250°FFeature cast-iron housings. Elastomeric seal with flinger preserves lubricant and keeps contaminants out. Ultra-Class units have solid base construction for optimum load and shock stability and black oxide coating for superior environmental protection.
Technical Specifications
- Item 2-Bolt Flange Bearing
- Mounted Bearing Item 2-Bolt Flange Bearing
- Bearing Insert Type Ball
- Bore Dia. 1 3/16 in
- Shaft Locking Type Set Screw
- Bearing Housing Material Type Cast Iron
- Bearing Insert Material 52100 Chrome Steel
- Bolt Hole Center-to-Center 5 1/8 in
- Series Medium Duty
- Bolt Size 7/16 in
- Overall Height 1 53/64 in
- Overall Width 3 25/32 in
- Overall Length 6 5/32 in
- Bearing Lubrication Shell Alvania #3 or NLGI #3 Equivalent
- Dynamic Load Capacity 5,750 lb
- Static Load Capacity 3,450 lb
- Temp. Range -20 Degrees to 250 Degrees F
- Finish Painted
- Dimension A 1 13/32 in
- Dimension Ao 1 53/64 in
- Dimension B 1 11/16 in
- Dimension D 1 3/16 in
- Dimension H 6 5/32 in
- Dimension J 5 1/8 in
- Dimension L 3 25/32 in
- Dimension N 33/64 in
- Dimension S 11/16 in
Manufacturer Details
- Manufacturer: NTN
- Condensed Mfg Number: UCFLUX1316M
- MPN: UCFLUX-1.3/16M
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: JP
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483204040
- GDS Category Name: Flange Mount Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171511
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 11
- UNSPSC Commodity Name: Pillow block bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 3, 2024 10:15pm UTC
