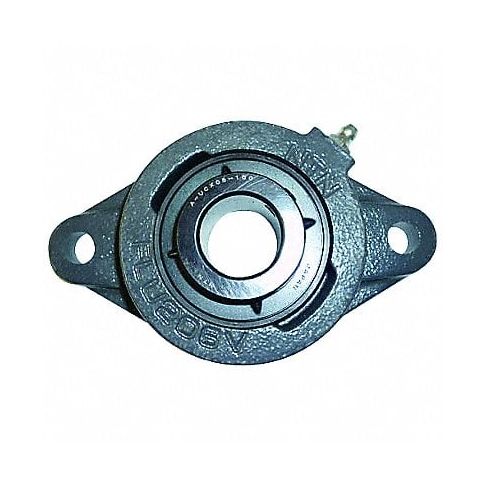

2 Bolt Flng Brg Radial 1 15/16in Bore MPN:UCFLUX-1.15/16M
The two bolt flange blind radial bearing by bertech offers numerous benefits across various sectors seeking top-grade power transmission solutions hence suiting those operating within harsh & dynamic environments. The heavy-duty design of this product ensures optimal performance under rigorous demands while its unique floating capability helps maintain precision under misalignment thus reducing chances of malfunctioning or damage from occurring. Widely used across sectors such as automotive, marine, mining or construction amongst others, this versatile bearing provides the needed reliability to carry out power transmission functions in applications that demand quality & durable components hence offering cost-effectiveness when looking at maintenance costs & production downtime minimization over its service life.
Technical Specifications
- Item 2-Bolt Flange Bearing
- Mounted Bearing Item 2-Bolt Flange Bearing
- Bearing Insert Type Ball
- Bore Dia. 1 15/16 in
- Shaft Locking Type Set Screw
- Bearing Housing Material Type Cast Iron
- Bearing Insert Material 52100 Chrome Steel
- Bolt Hole Center-to-Center 7 1/4 in
- Series Medium Duty
- Bolt Size 9/16 in
- Overall Height 2 17/32 in
- Overall Width 5 9/32 in
- Overall Length 8 17/32 in
- Bearing Lubrication Shell Alvania #3 or NLGI #3 Equivalent
- Dynamic Load Capacity 9,750 lb
- Static Load Capacity 6,550 lb
- Temp. Range -20 Degrees to 250 Degrees F
- Finish Painted
- Dimension A 1 15/16 in
- Dimension Ao 2 17/32 in
- Dimension B 2 7/32 in
- Dimension D 1 15/16 in
- Dimension H 8 17/32 in
- Dimension J 7 1/4 in
- Dimension L 5 9/32 in
- Dimension N 43/64 in
- Dimension S 7/8 in
Manufacturer Details
- Manufacturer: NTN
- Condensed Mfg Number: UCFLUX11516M
- MPN: UCFLUX-1.15/16M
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: JP
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483204040
- GDS Category Name: Flange Mount Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171511
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 11
- UNSPSC Commodity Name: Pillow block bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
