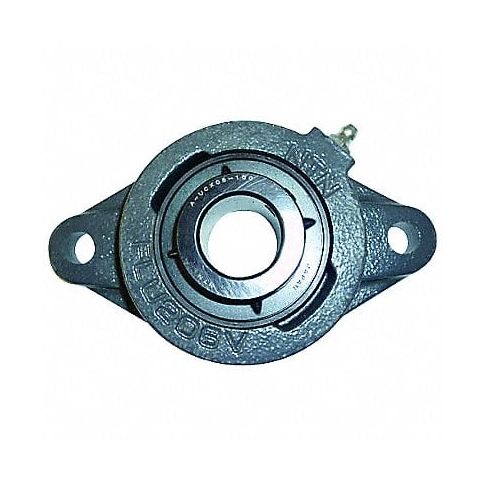

2 Bolt Flange Brg Radial Ball 5/8in Bore MPN:UCFLU-5/8M
SKU
226-CXO-5RYH4
2 Bolt Flange Brg Radial Ball 5/8in Bore
The 2 Bolt Flange Brg Radial Ball with a 5/8 bore is an exceptional fastening solution for various applications requiring secure and stable connections. Made of top-grade materials, this product offers high resistance against corrosion and ensures maximum durability. Its 2 bolt flanges provide extra stability while the radial ball bearing offers smooth rotation. With its versatile design, this product is suitable for multiple industries such as automotive, aerospace, construction, and more. Moreover, it has a convenient pre-assembled design that saves time during installation.
Mounted Ball Bearings• Temp. range: -20° to 250°FFeature cast-iron housings. Elastomeric seal with flinger preserves lubricant and keeps contaminants out. Ultra-Class units have solid base construction for optimum load and shock stability and black oxide coating for superior environmental protection.
Technical Specifications
- Item 2-Bolt Flange Bearing
- Mounted Bearing Item 2-Bolt Flange Bearing
- Bearing Insert Type Ball
- Bore Dia. 5/8 in
- Shaft Locking Type Set Screw
- Bearing Housing Material Type Cast Iron
- Bearing Insert Material 52100 Chrome Steel
- Bolt Hole Center-to-Center 3 in
- Series Standard Duty
- Bolt Size 3/8 in
- Overall Height 1 19/64 in
- Overall Width 2 13/32 in
- Overall Length 3 27/32 in
- Bearing Lubrication Shell Alvania #3 or NLGI #3 Equivalent
- Dynamic Load Capacity 2,160 lb
- Static Load Capacity 1,030 lb
- Temp. Range -20 Degrees to 250 Degrees F
- Finish Painted
- Dimension A 1 7/64 in
- Dimension Ao 1 19/64 in
- Dimension B 1 5/64 in
- Dimension D 5/8 in
- Dimension H 3 27/32 in
- Dimension J 3 in
- Dimension L 2 13/32 in
- Dimension N 25/64 in
- Dimension S 29/64 in
Manufacturer Details
- Manufacturer: NTN
- Condensed Mfg Number: UCFLU58M
- MPN: UCFLU-5/8M
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: JP
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483204040
- GDS Category Name: Flange Mount Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171501
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Flanged bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 3, 2024 10:15pm UTC
