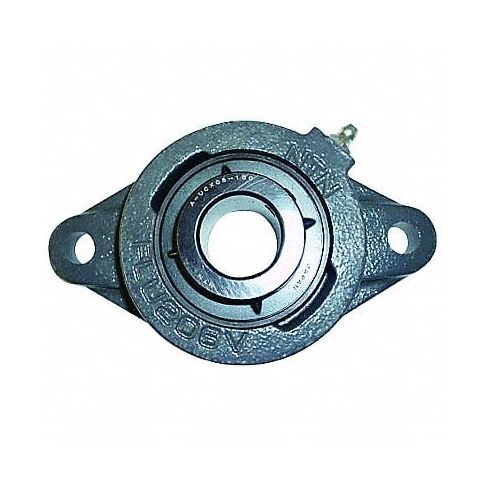

2 Bolt Flng Brg Radial Ball 1 3/8in Bore MPN:UCFLU-1.3/8M
Introducing our top-performing 2 Bolt Flange Bearing from NTN! Designed for mounting ball bearings in various applications, this mounted bearing unit offers superior performance under tough conditions. Its solid base construction and black oxide coating make it ideal for optimum load stability, while its elastomeric seal with flinger ensures contaminants are kept out and lubricant is preserved. The cast-iron housing ensures thermal stability between -20F and 250F, making it suitable for both indoor and outdoor use. Applications include automotive equipment, textile machinery, agricultural equipment, construction machinery, material handling equipment, and more! With the superior quality of NTN, experience smooth and reliable operation in your next project.
Top product features:
- Cast-iron housing for thermal stability
- Elastomeric seal with flinger to preserve lubricant and keep contaminants out
- Solid base construction for optimum load and shock stability
Top product applications:
- Use in automotive equipment that requires maintenance-free operation
- Use in textile machinery requiring reduced wear and tear due to contaminants
- Use in agricultural equipment requiring long-lasting, temperature-resistant bearings
Technical Specifications
- Item 2-Bolt Flange Bearing
- Mounted Bearing Item 2-Bolt Flange Bearing
- Bearing Insert Type Ball
- Bore Dia. 1 3/8 in
- Shaft Locking Type Set Screw
- Bearing Housing Material Type Cast Iron
- Bearing Insert Material 52100 Chrome Steel
- Bolt Hole Center-to-Center 5 1/8 in
- Series Standard Duty
- Bolt Size 7/16 in
- Overall Height 1 53/64 in
- Overall Width 3 25/32 in
- Overall Length 6 5/32 in
- Bearing Lubrication Shell Alvania #3 or NLGI #3 Equivalent
- Dynamic Load Capacity 5,750 lb
- Static Load Capacity 3,450 lb
- Temp. Range -20 Degrees to 250 Degrees F
- Finish Painted
- Dimension A 1 13/32 in
- Dimension Ao 1 53/64 in
- Dimension B 1 11/16 in
- Dimension D 1 3/8 in
- Dimension H 6 5/32 in
- Dimension J 5 1/8 in
- Dimension L 3 25/32 in
- Dimension N 33/64 in
- Dimension S 11/16 in
Manufacturer Details
- Manufacturer: NTN
- Condensed Mfg Number: UCFLU138M
- MPN: UCFLU-1.3/8M
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: JP
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483204040
- GDS Category Name: Flange Mount Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171501
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Flanged bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
