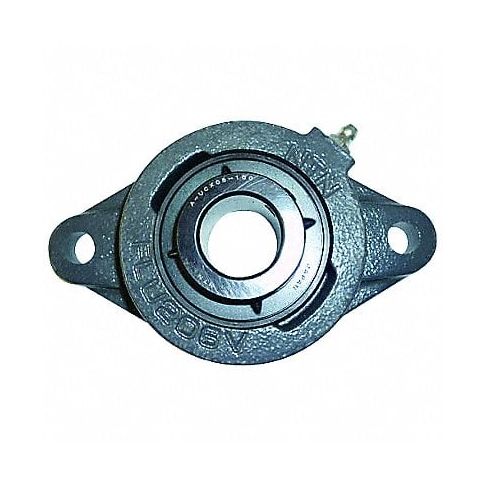

2 Bolt Flng Brg Radial 1 15/16in Bore MPN:UCFLU-1.15/16M
2 Bolt Flng Brg Radial 1 15/16in Bore
The bertech two bolt flange blind radial bearing provides outstanding performance under high loads & speeds owing to its heavy-duty construction hence making it an ideal power transmission solution across numerous industries including power tools or accessories demanding reliable components to withstand harsh usage over time. Its unique floating design ensures optimal precision even in case of misalignment while minimizing downtime & maintenance costs due to reduced chances of malfunction, thus suiting various applications that require efficiency & durability in power transmission functions.
Mounted Ball Bearings• Temp. range: -20° to 250°FFeature cast-iron housings. Elastomeric seal with flinger preserves lubricant and keeps contaminants out. Ultra-Class units have solid base construction for optimum load and shock stability and black oxide coating for superior environmental protection.
Technical Specifications
- Item 2-Bolt Flange Bearing
- Mounted Bearing Item 2-Bolt Flange Bearing
- Bearing Insert Type Ball
- Bore Dia. 1 15/16 in
- Shaft Locking Type Set Screw
- Bearing Housing Material Type Cast Iron
- Bearing Insert Material 52100 Chrome Steel
- Bolt Hole Center-to-Center 6 3/16 in
- Series Standard Duty
- Bolt Size 5/8 in
- Overall Height 2 25/64 in
- Overall Width 4 9/16 in
- Overall Length 7 15/32 in
- Bearing Lubrication Shell Alvania #3 or NLGI #3 Equivalent
- Dynamic Load Capacity 7,900 lb
- Static Load Capacity 5,200 lb
- Temp. Range -20 Degrees to 250 Degrees F
- Finish Painted
- Dimension A 1 13/16 in
- Dimension Ao 2 25/64 in
- Dimension B 2 1/32 in
- Dimension D 1 15/16 in
- Dimension H 7 15/32 in
- Dimension J 6 3/16 in
- Dimension L 4 9/16 in
- Dimension N 43/64 in
- Dimension S 3/4 in
Manufacturer Details
- Manufacturer: NTN
- Condensed Mfg Number: UCFLU11516M
- MPN: UCFLU-1.15/16M
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: JP
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483204040
- GDS Category Name: Flange Mount Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171501
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Flanged bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 3, 2024 10:15pm UTC
Category: Bearings
