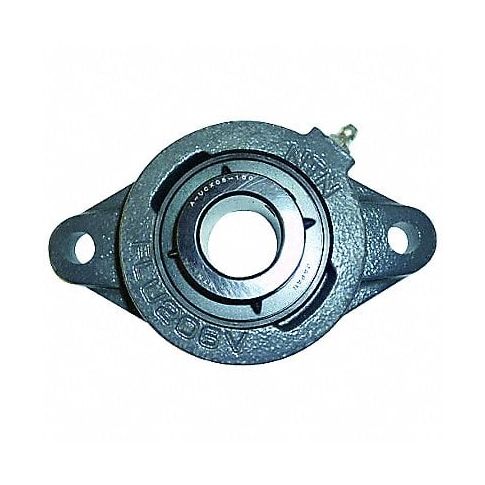

2 Bolt Flng Brg Radial Ball 1 1/8in Bore MPN:UCFLU-1.1/8M
The 2 bolt flange radial ball bearing is designed for diverse industries where rotational precision is key, such as automotive, machining or industrial automation equipment production. This heavy-duty unit features a sizeable 1 1/8 bore diameter and comes at an economical price making it suited to budget-conscious professionals without sacrificing quality on accuracy required during their operations. As its two sets of self-lubricating ball bearings enhance both radial and axial loads distribution, this bearing offers outstanding load capacity under varying pressure points which translates into reduced operational noise. Thanks to its standard mounting holes' spacing pattern compatible across numerous machinery models, maintenance personnel can readily swap old bearings in their repairs without retooling downtime- this makes them a popular choice amongst professional technicians who manage fleets of industrial machines.
Technical Specifications
- Item 2-Bolt Flange Bearing
- Mounted Bearing Item 2-Bolt Flange Bearing
- Bearing Insert Type Ball
- Bore Dia. 1 1/8 in
- Shaft Locking Type Set Screw
- Bearing Housing Material Type Cast Iron
- Bearing Insert Material 52100 Chrome Steel
- Bolt Hole Center-to-Center 4 19/32 in
- Series Standard Duty
- Bolt Size 3/8 in
- Overall Height 1 21/32 in
- Overall Width 3 9/32 in
- Overall Length 5 19/32 in
- Bearing Lubrication Shell Alvania #3 or NLGI #3 Equivalent
- Dynamic Load Capacity 4,400 lb
- Static Load Capacity 2,540 lb
- Temp. Range -20 Degrees to 250 Degrees F
- Finish Painted
- Dimension A 1 5/16 in
- Dimension Ao 1 21/32 in
- Dimension B 1 1/2 in
- Dimension D 1 1/8 in
- Dimension H 5 19/32 in
- Dimension J 4 19/32 in
- Dimension L 3 9/32 in
- Dimension N 29/64 in
- Dimension S 5/8 in
Manufacturer Details
- Manufacturer: NTN
- Condensed Mfg Number: UCFLU118M
- MPN: UCFLU-1.1/8M
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: JP
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483204040
- GDS Category Name: Flange Mount Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171501
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Flanged bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
