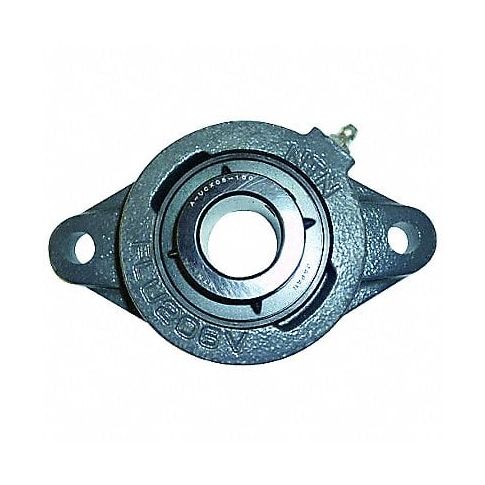

2 Bolt Flng Brg Radial Ball 1 1/4in Bore MPN:UCFLU-1.1/4M
2 Bolt Flng Brg Radial Ball 1 1/4in Bore
The two bolt flanged radial ball bearing is designed with a bore diameter of 1-1/4 inches, making it suitable for heavy duty applications that require substantial load support. With a steel cage for enhanced durability, this radial bearing provides excellent precision and wear resistance. Its high load capacity and ability to support movement in all directions make it perfect for various power transmission systems, including robotic or automotive machinery, mills and conveyors. Its versatility, sturdiness, and slim profile ensure it fits most industrial equipment and offers efficient operation in both horizontal and vertical orientations.
Mounted Ball Bearings• Temp. range: -20° to 250°FFeature cast-iron housings. Elastomeric seal with flinger preserves lubricant and keeps contaminants out. Ultra-Class units have solid base construction for optimum load and shock stability and black oxide coating for superior environmental protection.
Technical Specifications
- Item 2-Bolt Flange Bearing
- Mounted Bearing Item 2-Bolt Flange Bearing
- Bearing Insert Type Ball
- Bore Dia. 1 1/4 in
- Shaft Locking Type Set Screw
- Bearing Housing Material Type Cast Iron
- Bearing Insert Material 52100 Chrome Steel
- Bolt Hole Center-to-Center 5 1/8 in
- Series Standard Duty
- Bolt Size 7/16 in
- Overall Height 1 53/64 in
- Overall Width 3 25/32 in
- Overall Length 6 5/32 in
- Bearing Lubrication Shell Alvania #3 or NLGI #3 Equivalent
- Dynamic Load Capacity 5,750 lb
- Static Load Capacity 3,450 lb
- Temp. Range -20 Degrees to 250 Degrees F
- Finish Painted
- Dimension A 1 13/32 in
- Dimension Ao 1 53/64 in
- Dimension B 1 11/16 in
- Dimension D 1 1/4 in
- Dimension H 6 5/32 in
- Dimension J 5 1/8 in
- Dimension L 3 25/32 in
- Dimension N 33/64 in
- Dimension S 11/16 in
Manufacturer Details
- Manufacturer: NTN
- Condensed Mfg Number: UCFLU114M
- MPN: UCFLU-1.1/4M
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: JP
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483204040
- GDS Category Name: Flange Mount Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171501
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Flanged bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
