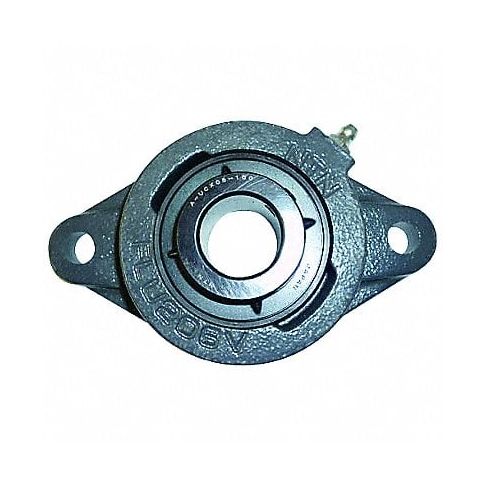

2 Bolt Flng Brg Radial Ball 1 1/2in Bore MPN:UCFLU-1.1/2M
Free Shipping
In Stock
The radial ball bearing 2 bolt flange is an essential component for precise rotational movement in power transmission and bearings systems. Its unique design features a 1.5-inch bore, which provides smooth operation and allows the transfer of high amounts of load with minimal friction, while ensuring precision rotation. This product can be utilized across various industries that employ mechanical devices, including automotive, machinery manufacturing, construction equipment, among others where precision movement and high speed is a requirement. With its versatile application in power transmission and bearings systems, this 2 bolt flange radial ball bearing is a valuable addition to any professional tool kit or workshop for optimal performance and reliability.
Technical Specifications
- Item 2-Bolt Flange Bearing
- Mounted Bearing Item 2-Bolt Flange Bearing
- Bearing Insert Type Ball
- Bore Dia. 1 1/2 in
- Shaft Locking Type Set Screw
- Bearing Housing Material Type Cast Iron
- Bearing Insert Material 52100 Chrome Steel
- Bolt Hole Center-to-Center 5 21/32 in
- Series Standard Duty
- Bolt Size 7/16 in
- Overall Height 2 9/64 in
- Overall Width 4 1/8 in
- Overall Length 6 25/32 in
- Bearing Lubrication Shell Alvania #3 or NLGI #3 Equivalent
- Dynamic Load Capacity 6,550 lb
- Static Load Capacity 4,000 lb
- Temp. Range -20 Degrees to 250 Degrees F
- Finish Painted
- Dimension A 1 17/32 in
- Dimension Ao 29/64 in
- Dimension B 1 15/16 in
- Dimension D 1 1/2 in
- Dimension H 6 25/32 in
- Dimension J 5 21/32 in
- Dimension L 4 1/8 in
- Dimension N 33/64 in
- Dimension S 3/4 in
Manufacturer Details
- Manufacturer: NTN
- Condensed Mfg Number: UCFLU112M
- MPN: UCFLU-1.1/2M
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: JP
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483204040
- GDS Category Name: Flange Mount Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171501
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Flanged bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
