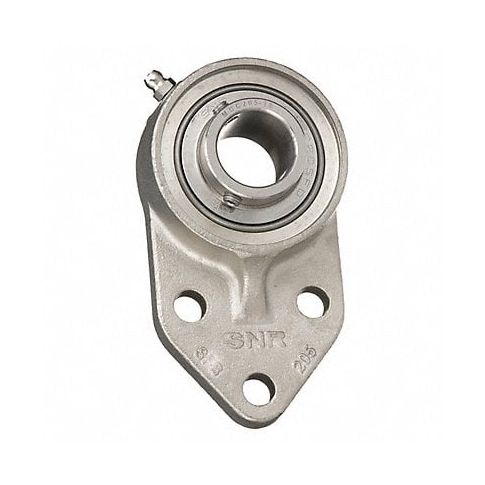

3 Bolt Flng Brg Radial 1 3/16in Bore MPN:SUCFB206-19CCFG1
The 3 bolt flange bearing radial type is designed to accommodate various industries requiring reliable and secure solutions for their machinery. Manufactured with a high carbon alloy steel, this bearing boasts outstanding durability and strength. The triple lock nut system provides exceptional rigidity during operation while simplifying installation and removal processes, saving both time and effort. It offers a bore size of 1 3/16 inches and can handle mounting diameters up to 3.94 inches making it suitable for transmissions, motors or pumps in numerous applications. This self-lubricating bearing operates effectively at temperatures up to 625F ensuring consistent performance even under challenging conditions. Overall, this versatile solution provides excellent value for any professional seeking a reliable and cost-effective option suited to their specific needs - whether it be in construction, automotive repair or manufacturing fields.
Technical Specifications
- Item 3-Bolt Flange Bearing
- Mounted Bearing Item 3-Bolt Flange Bearing
- Bearing Insert Type Ball
- Bore Dia. 1 3/16 in
- Shaft Locking Type Set Screw
- Bearing Housing Material Type Stainless Steel
- Bearing Insert Material 440C Stainless Steel
- Bolt Hole Center-to-Center 47 37/64 in
- Series 206
- Bolt Size M10
- Overall Height 2 5/16 in
- Overall Width 3 17/64 in
- Overall Length 5 29/64 in
Manufacturer Details
- Manufacturer: NTN
- Condensed Mfg Number: SUCFB20619CCFG1
- MPN: SUCFB206-19CCFG1
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Flange Mount Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171501
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Flanged bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
