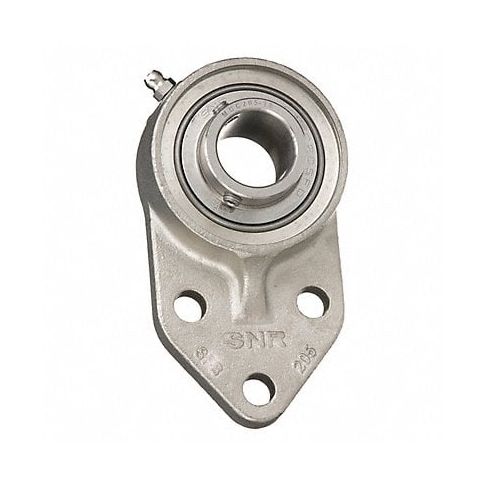

3 Bolt Flng Brg Radial 1 3/16in Bore MPN:SUCFB206-19C0FG1
The 3 bolt flange bearing radial type is an exceptional component suited for use in power transmission applications due to its outstanding strength and durability. Constructed with a high carbon alloy steel material, this solution offers superior performance under challenging conditions. Its triple lock nut mechanism simplifies installation and removal processes while providing rigidity during operation. Additionally, the bore size of 1 3/16 inches accommodates mounting diameters up to 3.94 inches, making it suitable for various industrial machinery requirements. This self-lubricating bearing operates efficiently at temperatures up to 625F ensuring consistent performance, making the 3 bolt flange bearing radial type a crucial asset for any industry in need of reliable power transmission solutions.
Technical Specifications
- Item 3-Bolt Flange Bearing
- Mounted Bearing Item 3-Bolt Flange Bearing
- Bearing Insert Type Ball
- Bore Dia. 1 3/16 in
- Shaft Locking Type Set Screw
- Bearing Housing Material Type Stainless Steel
- Bearing Insert Material 440C Stainless Steel
- Bolt Hole Center-to-Center 47 37/64 in
- Series 206
- Bolt Size M10
- Overall Height 2 5/16 in
- Overall Width 3 17/64 in
- Overall Length 5 29/64 in
Manufacturer Details
- Manufacturer: NTN
- Condensed Mfg Number: SUCFB20619C0FG1
- MPN: SUCFB206-19C0FG1
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Flange Mount Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171501
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Flanged bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
