Disc Bearing Hex 1.153 in Non-Flanged MPN:HPS102GPE
SKU
226-CXO-4ZZD8

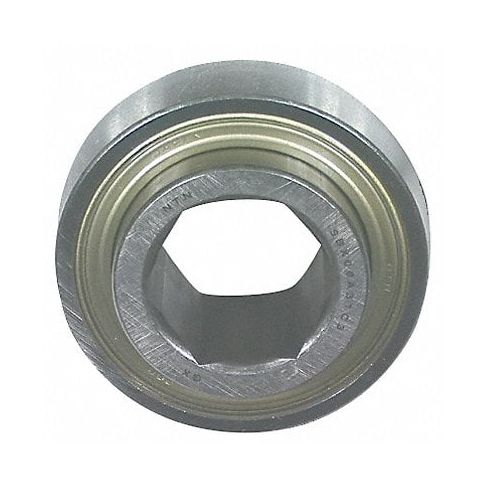

Disc Bearing Hex 1.153 in Non-Flanged
Disc bearing like this model is designed for heavy duty applications and provides stability through stable operations when compared to ball bearings. It comes at an affordable cost making it more appealing in the industrial setting especially in agriculture, construction or aerospace industries where the bearings will be subjected to immense stress. Moreover, its chrome steel material ensures durability and ability to withstand different temperatures during operations without requiring constant replacement.
Agricultural Disc Bearings• Advanced seal designs for heavily contaminated conditions Misalignment tolerant Honed raceways for smooth operation and long lifeHex Bore Disc BearingsEliminate need for locking devices and simplify installation. For moderately loaded, low-speed agricultural applications.
Technical Specifications
- Item Agricultural Disc Bearing
- Bearing Type Hex Bore, Spherical Outer Ring
- Bore Dia. 1.125 in
- Bore Tolerance +/-0.005 in
- Outside Dia. 2.8346 in
- Outside Dia. Tolerance +0/-0.0005 in
- Flange Size Not Applicable
- Width 0.9843 in
- ABEC Tolerance 1
- Dynamic Load Capacity 5,750 lb
- Static Load Capacity 3,450 lb
- Max. RPM 4,200 RPM
- Temp. Range -13 Degrees to 250 Degrees F
- Bearing Material Steel
- Cage Material Nylon
- Seal Material NBR
- Lubrication Shell Alvania #3
Manufacturer Details
- Manufacturer: NTN
- Condensed Mfg Number: HPS102GPE
- MPN: HPS102GPE
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: JP
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8482105052
- GDS Category Name: Agricultural Disc Ball Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171504
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Ball bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 3, 2024 10:14pm UTC
Category: Bearings
