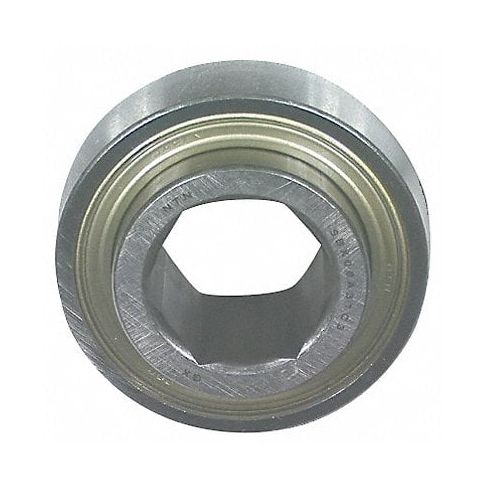

Disc Bearing Hex 1.153 in Non-Flanged MPN:HPS102GP
Disc Bearing Hex 1.153 in Non-Flanged
Disc bearings such as this model are popular due to their ability to handle heavy loads with minimal friction compared to ball bearings. This specific bearing is made of chrome steel, making it durable and suitable for different applications. It has a diameter of 1.153 inches and comes without flanges so it can fit into various types of setups without the need for modification. Industries that can benefit from this disc bearing include agriculture, automotive, construction, aerospace, and general machinery maintenance sectors.
Agricultural Disc Bearings• Advanced seal designs for heavily contaminated conditions Misalignment tolerant Honed raceways for smooth operation and long lifeHex Bore Disc BearingsEliminate need for locking devices and simplify installation. For moderately loaded, low-speed agricultural applications.
Technical Specifications
- Item Agricultural Disc Bearing
- Bearing Type Hex Bore, Spherical Outer Ring
- Bore Dia. 1.125 in
- Bore Tolerance +/-0.005 in
- Outside Dia. 2.8346 in
- Outside Dia. Tolerance +0/-0.0005 in
- Flange Size Not Applicable
- Width 1.4843 in
- ABEC Tolerance 1
- Dynamic Load Capacity 5,750 lb
- Static Load Capacity 3,450 lb
- Max. RPM 630 RPM
- Temp. Range -13 Degrees to 250 Degrees F
- Bearing Material Steel
- Cage Material Pressed Steel
- Seal Material NBR
- Lubrication Shell Alvania #3
Manufacturer Details
- Manufacturer: NTN
- Condensed Mfg Number: HPS102GP
- MPN: HPS102GP
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: JP
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8482105052
- GDS Category Name: Agricultural Disc Ball Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171504
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Ball bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Related ASINs: B08P5YS8KW, B0CGRMQV33, B0C74XL9Y9
Product info last updated on April 3, 2024 10:14pm UTC Category: Bearings
