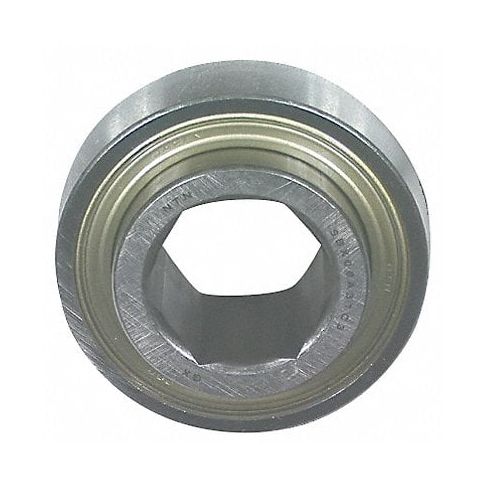

Disc Bearing Hex 1.028 in Non-Flanged MPN:HPS100TPD
SKU
226-CXO-4ZZD6
Disc Bearing Hex 1.028 in Non-Flanged
These precision engineered bearings are crafted from durable heat-treated steel providing maximum load capacity and low friction performance, delivering smooth movement with reduced wear ensuring longer service life. Featuring self-lubricating properties allowing less maintenance requirements while being chemically resistant to corrosion thus perfect for use in demanding environments such as construction or mining equipment, agricultural machinery or general industrial applications hence offering a cost-effective solution to customers with need of high performance bearing components among maintenance technicians and machinists working across diverse industries.
Agricultural Disc Bearings• Advanced seal designs for heavily contaminated conditions Misalignment tolerant Honed raceways for smooth operation and long lifeHex Bore Disc BearingsEliminate need for locking devices and simplify installation. For moderately loaded, low-speed agricultural applications.
Technical Specifications
- Item Agricultural Disc Bearing
- Bearing Type Hex Bore, Spherical Outer Ring
- Bore Dia. 1.0 in
- Bore Tolerance +/-0.005 in
- Outside Dia. 2.4409 in
- Outside Dia. Tolerance +0/-0.0005 in
- Flange Size Not Applicable
- Width 1.0866 in
- ABEC Tolerance 1
- Dynamic Load Capacity 4,400 lb
- Static Load Capacity 2,540 lb
- Max. RPM 730 RPM
- Temp. Range -13 Degrees to 250 Degrees F
- Bearing Material Steel
- Cage Material Nylon
- Seal Material NBR
- Shield Material Delrin Resin
- Lubrication Shell Alvania #3
Manufacturer Details
- Manufacturer: NTN
- Condensed Mfg Number: HPS100TPD
- MPN: HPS100TPD
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: JP
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8482105052
- GDS Category Name: Agricultural Disc Ball Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171504
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Ball bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
