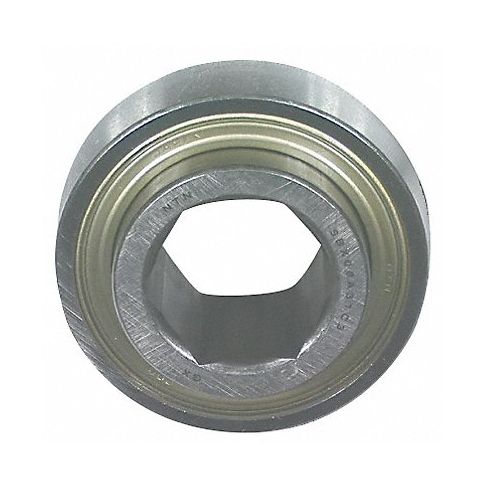

Disc Bearing Hex 1.279 in Non-Flanged MPN:HPC104TPA
The disc bearing hex with a size of 1.279 inches provides exceptional support for agricultural equipment's rotational movements ensuring smooth operation even in high-speed applications while distributing heat equally across the raceway minimizing deformation over time maintaining its precision throughout use. Its lightweight construction enhances maneuverability allowing greater responsiveness to changes making it a popular choice among tractors, combines and other heavy machinery operating under demanding conditions where reliability is crucial within the Agricultural Disc Ball Bearings market segment providing ease of access for maintenance or replacement should any issues arise keeping downtime at minimal levels. The non-flanged design offers versatility to fit into various setups making it a valuable component among farmers and professionals alike who need dependable bearings to guarantee optimal productivity across their operations.
Technical Specifications
- Item Agricultural Disc Bearing
- Bearing Type Hex Bore, Cylindrical Outer Ring
- Bore Dia. 1.25 in
- Bore Tolerance +/-0.005 in
- Outside Dia. 3.1496 in
- Outside Dia. Tolerance +0/-0.0005 in
- Flange Size Not Applicable
- Width 1.437 in
- ABEC Tolerance 1
- Dynamic Load Capacity 7,350 lb
- Static Load Capacity 4,450 lb
- Max. RPM 520 RPM
- Temp. Range -13 Degrees to 250 Degrees F
- Bearing Material Steel
- Cage Material Nylon
- Seal Material NBR
- Lubrication Temprex N2/Unirex N2
Manufacturer Details
- Manufacturer: NTN
- Condensed Mfg Number: HPC104TPA
- MPN: HPC104TPA
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: JP
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8482105052
- GDS Category Name: Agricultural Disc Ball Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171504
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Ball bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
