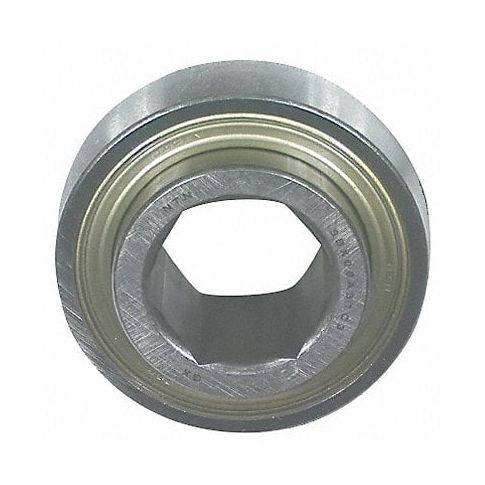

Disc Bearing Hex 1.283 in Non-Flanged MPN:HPC103TPA
Our high-quality plain disc bearing is specifically designed to offer superior performance in applications requiring heavy-duty precision movement and ability to work under demanding conditions. The bearings' plain surface reduces friction while increasing its durability and further minimizes noise production during operations. Made from corrosion-resistant materials that can withstand harsh environments, the bearings are perfect for industries exposed to moisture or chemicals. In addition, their lightweight construction enhances efficiency in demanding applications while still delivering exceptional load-bearing capacity and long service life. Due to its versatility, affordability, and reliability, our disc bearing is essential for businesses seeking dependable bearings suitable for diverse applications at a budget-friendly price point.
Technical Specifications
- Item Agricultural Disc Bearing
- Bearing Type Hex Bore, Cylindrical Outer Ring
- Bore Dia. 1.25 in
- Bore Tolerance +/-0.005 in
- Outside Dia. 3.5433 in
- Outside Dia. Tolerance +0/-0.0005 in
- Flange Size Not Applicable
- Width 1.435 in
- ABEC Tolerance 1
- Dynamic Load Capacity 8,800 lb
- Static Load Capacity 5,700 lb
- Max. RPM 470 RPM
- Temp. Range -13 Degrees to 250 Degrees F
- Bearing Material Steel
- Cage Material Pressed Steel
- Seal Material NBR
- Lubrication Temprex N2/Unirex N2
Manufacturer Details
- Manufacturer: NTN
- Condensed Mfg Number: HPC103TPA
- MPN: HPC103TPA
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: JP
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8482105052
- GDS Category Name: Agricultural Disc Ball Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171504
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Ball bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
