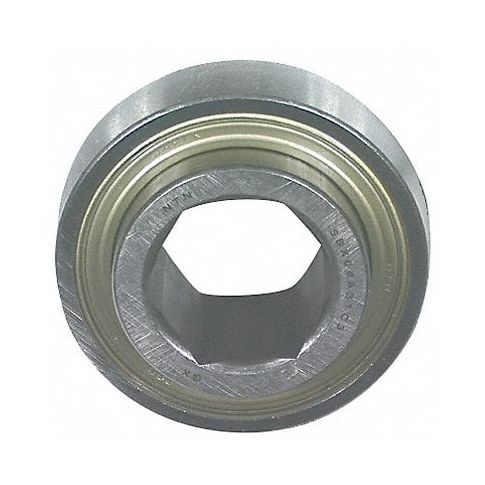

Disc Bearing Hex 1.027 in Non-Flanged MPN:HPC100TPD

Agricultural Disc Bearings
• Advanced seal designs for heavily contaminated conditions Misalignment tolerant Honed raceways for smooth operation and long life
Hex Bore Disc Bearings
Eliminate need for locking devices and simplify installation. For moderately loaded, low-speed agricultural applications.

Technical Specifications

• Item Agricultural Disc Bearing
• Bearing Type Hex Bore, Cylindrical Outer Ring
• Bore Dia. 1.0 in
• Bore Tolerance +/-0.005 in
• Outside Dia. 2.4409 in
• Outside Dia. Tolerance +0/-0.0005 in
• Flange Size Not Applicable
• Width 1.06 in
• ABEC Tolerance 1
• Dynamic Load Capacity 4,350 lb
• Static Load Capacity 2,500 lb
• Max. RPM 730 RPM
• Temp. Range -13 Degrees to 250 Degrees F
• Bearing Material Steel
• Cage Material Nylon
• Seal Material NBR
• Shield Material Delrin Resin
• Lubrication Shell Alvania #3

Manufacturer Details

• Manufacturer: NTN
• Condensed Mfg Number: HPC100TPD
• MPN: HPC100TPD

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: JP
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8482105052
• GDS Category Name: Agricultural Disc Ball Bearings
• GDS Family Name: Bearings
• GDS Segment Name: Power Transmission
• UNSPSC: 31171504
• UNSPSC Class ID: 15
• UNSPSC Commodity Name: Bearings
• UNSPSC Commodity ID: 04
• UNSPSC Commodity Name: Ball bearings
• UNSPSC Family ID: 17
• UNSPSC Family Name: Bearings and bushings and wheels and gears
• UNSPSC Segment ID: 31
• UNSPSC Segment Name: Manufacturing Components and Supplies

Shipping Details

• Not For Sale In: HI AK PR
