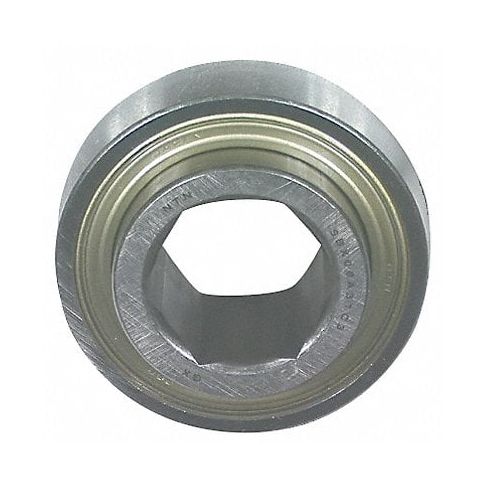

Disc Bearing Hex 1.027 in Non-Flanged MPN:HPC100TP
Our high-quality, plain disc bearing is designed to offer superior performance in various industrial applications, such as agriculture and construction machinery, requiring heavy-duty, precision movement under tough conditions. The plain surface of the bearing reduces friction while increasing durability and minimizes noise production for quiet operation. Its lightweight construction further contributes to improved efficiency in demanding applications, while still delivering exceptional load-bearing capacity and long service life. Made from corrosion-resistant materials that withstand harsh environments, this bearing is perfect for industries exposed to moisture or chemicals. Due to its versatility, affordability, and reliability, our disc bearing is essential for businesses seeking dependable bearings suitable for diverse applications at a budget-friendly price point.
Technical Specifications
- Item Agricultural Disc Bearing
- Bearing Type Hex Bore, Cylindrical Outer Ring
- Bore Dia. 1.0 in
- Bore Tolerance +/-0.005 in
- Outside Dia. 2.4409 in
- Outside Dia. Tolerance +0/-0.0005 in
- Flange Size Not Applicable
- Width 0.9449 in
- ABEC Tolerance 1
- Dynamic Load Capacity 4,400 lb
- Static Load Capacity 2,540 lb
- Max. RPM 4,850 RPM
- Temp. Range -13 Degrees to 250 Degrees F
- Bearing Material Steel
- Cage Material Nylon
- Seal Material NBR
- Lubrication Shell Alvania #3
Manufacturer Details
- Manufacturer: NTN
- Condensed Mfg Number: HPC100TP
- MPN: HPC100TP
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: JP
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8482105052
- GDS Category Name: Agricultural Disc Ball Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171504
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Ball bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
