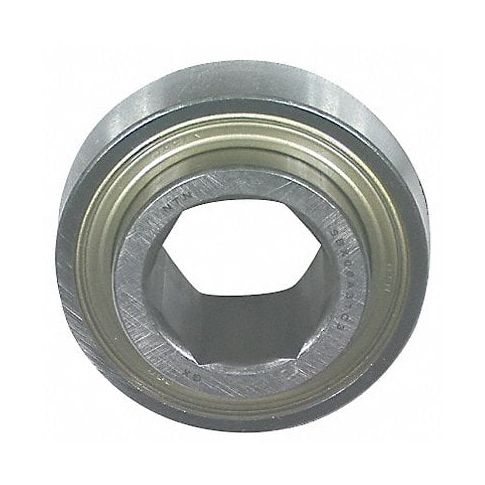

Disc Bearing Hex 1.027 in Non-Flanged MPN:HPC100GP
Disc Bearing Hex 1.027 inch is a widely used bearing for various industrial applications requiring high load-bearing capacity and precision movement. Its plain surface eliminates the need for lubrication making it suitable for harsh environments such as outdoor equipment or automotive brake systems, while also being cost-effective in comparison to ball bearings. Moreover, with a height of 0.420 inches and an inner diameter of 0.813 inches, the disc bearing is versatile enough to fit in various applications, from small robotics machines to heavy-duty construction equipment. This component offers precision operation, high load capacity, corrosion resistance, low cost, and long service life that makes it valuable for businesses in multiple industries like automotive, manufacturing, agriculture, aerospace, or recreation who seek robust bearing solutions to keep their machines running smoothly and efficiently.
Technical Specifications
- Item Agricultural Disc Bearing
- Bearing Type Hex Bore, Cylindrical Outer Ring
- Bore Dia. 1.0 in
- Bore Tolerance +/-0.005 in
- Outside Dia. 2.4409 in
- Outside Dia. Tolerance +0/-0.0005 in
- Flange Size Not Applicable
- Width 0.9449 in
- ABEC Tolerance 1
- Dynamic Load Capacity 4,350 lb
- Static Load Capacity 2,500 lb
- Max. RPM 730 RPM
- Temp. Range -13 Degrees to 250 Degrees F
- Bearing Material Steel
- Cage Material Nylon
- Seal Material NBR
- Lubrication SHELL ALVANIA #2
Manufacturer Details
- Manufacturer: NTN
- Condensed Mfg Number: HPC100GP
- MPN: HPC100GP
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: JP
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8482105052
- GDS Category Name: Agricultural Disc Ball Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171504
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Ball bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
