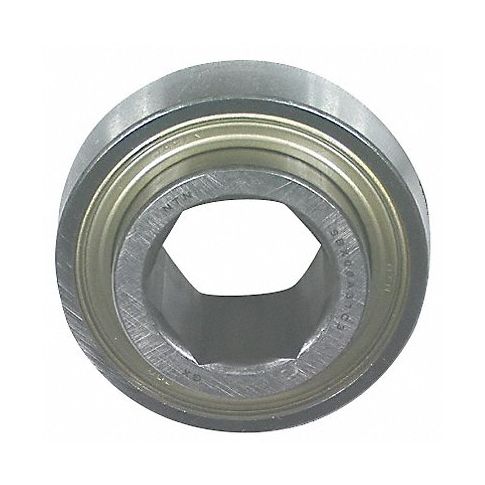

Disc Bearing Hex 0.712 in Non-Flanged MPN:SBX04A18LLMCS41/#02

Agricultural Disc Bearings
• Advanced seal designs for heavily contaminated conditions Misalignment tolerant Honed raceways for smooth operation and long life
Hex Bore Disc Bearings
Eliminate need for locking devices and simplify installation. For moderately loaded, low-speed agricultural applications.

Technical Specifications

• Item Agricultural Disc Bearing
• Bearing Type Hex Bore, Cylindrical Outer Ring
• Bore Dia. 0.6875 in
• Bore Tolerance +/-0.005 in
• Outside Dia. 1.8504 in
• Outside Dia. Tolerance +0/-0.0005 in
• Flange Size Not Applicable
• Width 0.8268 in
• ABEC Tolerance 1
• Dynamic Load Capacity 2,800 lb
• Static Load Capacity 1,500 lb
• Max. RPM 6,600 RPM
• Temp. Range -13 Degrees to 250 Degrees F
• Bearing Material Steel
• Cage Material Nylon
• Seal Material NBR
• Lubrication Chemplus EP-2

Manufacturer Details

• Manufacturer: NTN
• Condensed Mfg Number: SBX04A18LLMCS4102
• MPN: SBX04A18LLMCS41/#02

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: JP
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8482105048
• GDS Category Name: Agricultural Disc Ball Bearings
• GDS Family Name: Bearings
• GDS Segment Name: Power Transmission
• UNSPSC: 31171504
• UNSPSC Class ID: 15
• UNSPSC Commodity Name: Bearings
• UNSPSC Commodity ID: 04
• UNSPSC Commodity Name: Ball bearings
• UNSPSC Family ID: 17
• UNSPSC Family Name: Bearings and bushings and wheels and gears
• UNSPSC Segment ID: 31
• UNSPSC Segment Name: Manufacturing Components and Supplies

Shipping Details

• Not For Sale In: HI AK PR
