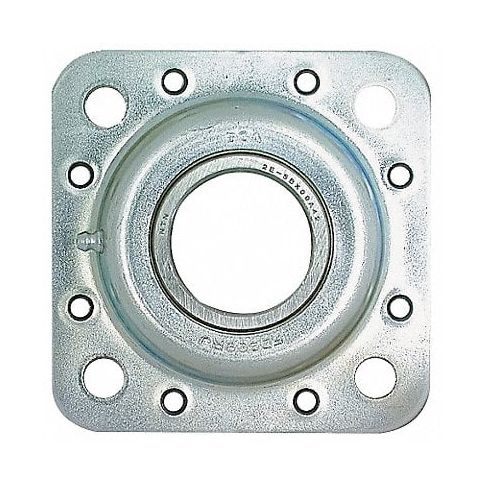

Disc Bearing Round 1.937 in Flanged MPN:FD211RJA
The 1.937-inch diameter flanged disc bearing is an essential component in power transmission and machinery applications where precision motion or rotary movements are crucial to performance. Made from high-quality material with a unique flat profile that reduces friction allowing smooth operation, this heavy-duty bearing offers unmatched performance under demanding conditions without requiring frequent replacements. Ideal for use in various industries such as automotive, construction equipment, and aerospace where powerful motors generate considerable force during operations, the flanged design provides added stability while its high load capacity ensures reliability in both horizontal or vertical applications. With excellent resistance to wear, corrosion and temperature changes, this flanged disc bearing offers extended service life even when exposed to challenging conditions making it a dependable choice for demanding industries requiring precision motion control systems that operate efficiently over prolonged periods of time.
Technical Specifications
- Item Agricultural Disc Bearing
- Bearing Type Flanged Round Bore
- Bore Dia. 1.9375 in
- Bore Tolerance +0/-0.0006 in
- Outside Dia. Not Applicable
- Outside Dia. Tolerance Not Applicable
- Flange Size 5.5000 sq in
- Width 2.125 in
- ABEC Tolerance 1
- Dynamic Load Capacity 9,800 lb
- Static Load Capacity 6,550 lb
- Max. RPM 430 RPM
- Temp. Range -13 Degrees to 250 Degrees F
- Bearing Material Steel
- Cage Material Nylon
- Seal Material NBR
- Shield Material Rust-resistant Metal
- Lubrication Shell Alvania #3
Manufacturer Details
- Manufacturer: NTN
- Condensed Mfg Number: FD211RJA
- MPN: FD211RJA
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: JP
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8482105056
- GDS Category Name: Agricultural Disc Ball Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171504
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Ball bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
