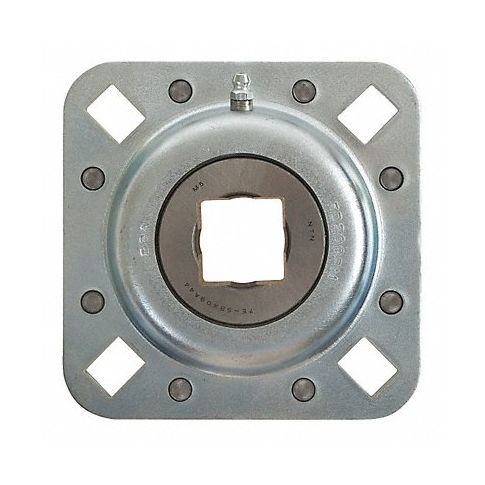

Disc Bearing Square 1.5 in Flanged MPN:FD209RK

This flanged disc bearing combines a heavy-duty, high-performance disc bearing design with rugged, corrosion-resistant housing for a bolt-in-place unit. It is designed for use in severe tillage applications. Advanced seal designs are also suitable for heavily contaminated conditions. Misalignment tolerant. Honed raceways help provide smooth operation and long service life.

Technical Specifications

• Item Agricultural Disc Bearing
• Bearing Type Flanged Square Bore
• Bore Dia. 1.25 in
• Bore Tolerance +/-0.005 in
• Outside Dia. Not Applicable
• Outside Dia. Tolerance Not Applicable
• Flange Size 5.0000 sq in
• Width 1.687 in
• ABEC Tolerance 1
• Dynamic Load Capacity 7,050 lb
• Static Load Capacity 4,550 lb
• Max. RPM 520 RPM
• Temp. Range -13 Degrees to 250 Degrees F
• Bearing Material Steel
• Cage Material Nylon
• Seal Material NBR
• Shield Material Rust-resistant Metal
• Lubrication Shell Alvania #3

Manufacturer Details

• Manufacturer: NTN
• Condensed Mfg Number: FD209RK
• MPN: FD209RK

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: JP
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8482105056
• GDS Category Name: Agricultural Disc Ball Bearings
• GDS Family Name: Bearings
• GDS Segment Name: Power Transmission
• UNSPSC: 31171504
• UNSPSC Class ID: 15
• UNSPSC Commodity Name: Bearings
• UNSPSC Commodity ID: 04
• UNSPSC Commodity Name: Ball bearings
• UNSPSC Family ID: 17
• UNSPSC Family Name: Bearings and bushings and wheels and gears
• UNSPSC Segment ID: 31
• UNSPSC Segment Name: Manufacturing Components and Supplies

Shipping Details

• Not For Sale In: HI AK PR
