Disc Bearing Round 1.75 in Flanged MPN:FD209RJH
Disc Bearing Round 1.75 in Flanged
Secotools' disc bearings are ideal for various industries where precision movement is crucial, including robotics, medical equipment, or machine tools, and come in a size of 1.75 inches with an outer flange diameter of 3.25 inches. Their construction from high quality stainless steel provides exceptional load capacity while minimizing wear-and-tear making them suitable for use under heavy loads and harsh conditions. Additionally, the self-lubricating properties of these bearings reduces maintenance needs for extended period of time increasing productivity in demanding operations.

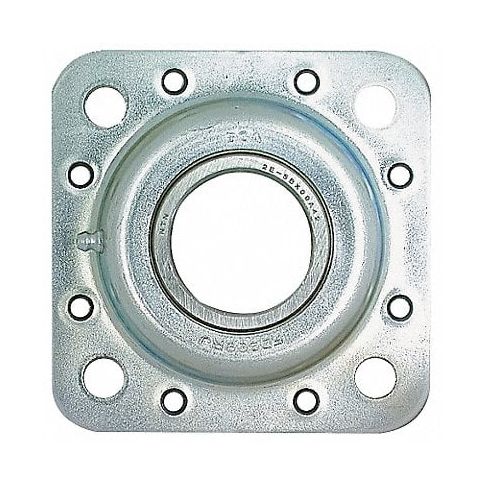

This NTN Round Bore Agricultural Disc Bearing features a flanged disc design that combines heavy-duty, high-performance disc bearing principles with rugged, corrosion-resistant housing for a bolt-in-place unit. It is ideal for severe tillage applications, and other heavily contaminated conditions. Misalignment tolerant. Honed raceways help provide smooth operation and long service life.
Technical Specifications
- Item Agricultural Disc Bearing
- Bearing Type Flanged Round Bore
- Bore Dia. 1.75 in
- Bore Tolerance +/-0.005 in
- Outside Dia. Not Applicable
- Outside Dia. Tolerance Not Applicable
- Flange Size 5.0000 sq in
- Width 1.687 in
- ABEC Tolerance 1
- Dynamic Load Capacity 7,050 lb
- Static Load Capacity 4,550 lb
- Max. RPM 520 RPM
- Temp. Range -13 Degrees to 250 Degrees F
- Bearing Material Steel
- Cage Material Nylon
- Seal Material NBR
- Lubrication Shell Alvania #3
Manufacturer Details
- Manufacturer: NTN
- Condensed Mfg Number: FD209RJH
- MPN: FD209RJH
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: JP
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8482105056
- GDS Category Name: Agricultural Disc Ball Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171504
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Ball bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 3, 2024 10:14pm UTC
Category: Bearings
