Disc Bearing Round 1.75 in Flanged MPN:FD209RJ
Disc Bearing Round 1.75 in Flanged
Secotools' disc bearings are an excellent choice for applications that demand precision movement and require smoothness and consistency, especially in industries such as robotics or machine tools. Constructed from high quality stainless steel material, this disc bearing comes in a size of 1.75 inches with an outer flange diameter of 3.25 inches providing superior load capacity and wear resistance. The self-lubricating properties reduce maintenance requirements for longer periods while simplifying tasks and increasing productivity under heavy loads or demanding environments. With its versatile design, this disc bearing is perfect when accuracy and reliability are paramount in precision-based operations.

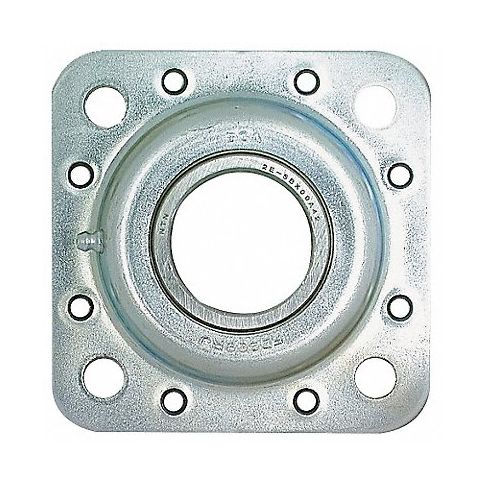

This NTN Round Bore Agricultural Disc Bearing features a flanged disc design that combines heavy-duty, high-performance disc bearing principles with rugged, corrosion-resistant housing for a bolt-in-place unit. It is ideal for severe tillage applications, and other heavily contaminated conditions. Misalignment tolerant. Honed raceways help provide smooth operation and long service life.
Technical Specifications
- Item Agricultural Disc Bearing
- Bearing Type Flanged Round Bore
- Bore Dia. 1.75 in
- Bore Tolerance +/-0.005 in
- Outside Dia. Not Applicable
- Outside Dia. Tolerance Not Applicable
- Flange Size 5.0000 sq in
- Width 1.687 in
- ABEC Tolerance 1
- Dynamic Load Capacity 7,050 lb
- Static Load Capacity 4,550 lb
- Max. RPM 520 RPM
- Temp. Range -13 Degrees to 250 Degrees F
- Bearing Material Steel
- Cage Material Nylon
- Seal Material NBR
- Shield Material Rust-resistant Metal
- Lubrication Shell Alvania #3
Manufacturer Details
- Manufacturer: NTN
- Condensed Mfg Number: FD209RJ
- MPN: FD209RJ
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: JP
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8482105056
- GDS Category Name: Agricultural Disc Ball Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171504
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Ball bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 3, 2024 10:14pm UTC
Category: Bearings
