Disc Bearing Round 1.5 in Flanged MPN:FD209RE
Disc Bearing Round 1.5 in Flanged
Fastener Superstore's Premium Quality Disc Bearing presents itself as an unparalleled option for applications where precision and high capacity load bearing capabilities are essential, rounding up to 1.5 inches in diameter with a flanged face measuring only about 0.587 inches in width, ensuring easy installation onto diverse types of shafts, while seals maintain optimal protection against dust or debris contamination to the bearing itself; it has seen widespread usage across various industries, including general manufacturing or textile machinery operations where smooth operation is key to efficient production flow.

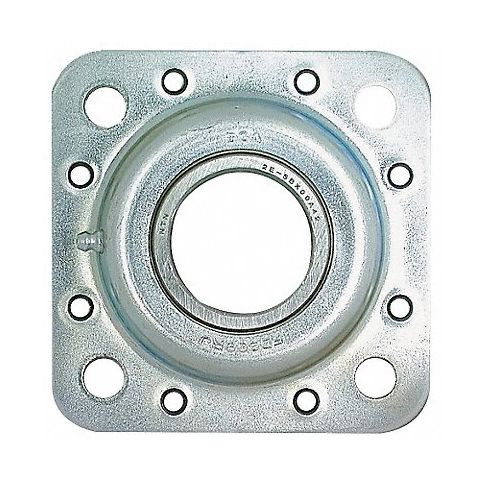

This NTN Round Bore Agricultural Disc Bearing features a flanged disc design that combines heavy-duty, high-performance disc bearing principles with rugged, corrosion-resistant housing for a bolt-in-place unit. It is ideal for severe tillage applications, and other heavily contaminated conditions. Misalignment tolerant. Honed raceways help provide smooth operation and long service life.
Technical Specifications
- Item Agricultural Disc Bearing
- Bearing Type Flanged Round Bore
- Bore Dia. 1.5 in
- Bore Tolerance +/-0.005 in
- Outside Dia. Not Applicable
- Outside Dia. Tolerance Not Applicable
- Flange Size 5.0000 sq in
- Width 1.687 in
- ABEC Tolerance 1
- Dynamic Load Capacity 7,050 lb
- Static Load Capacity 4,550 lb
- Max. RPM 520 RPM
- Temp. Range -13 Degrees to 250 Degrees F
- Bearing Material Steel
- Cage Material Nylon
- Seal Material NBR
- Shield Material Rust-resistant Metal
- Lubrication Shell Alvania #3
Manufacturer Details
- Manufacturer: NTN
- Condensed Mfg Number: FD209RE
- MPN: FD209RE
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: JP
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8482105056
- GDS Category Name: Agricultural Disc Ball Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171504
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Ball bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
