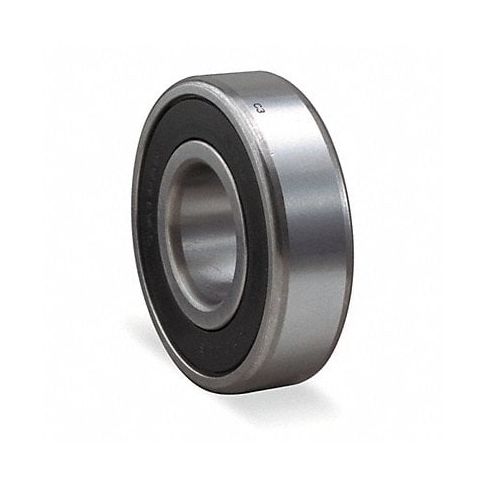

Radial Ball Brg 3/4in Bore Alloy Steel MPN:204BBAR
The radial ball bearing is a highly reliable and precision-engineered component that delivers exceptional load-carrying capacity for various power transmission applications such as machinery, motors, or transmissions. Crafted from alloy steel for added strength, it ensures durability under demanding conditions. Its bore size of 3/4 inches allows for seamless integration into your machine while maintaining accuracy and consistency during operation. Compatible with a wide range of industries such as automotive or mining equipment, professionals trust in its superior performance to increase productivity on the job site. The radial ball bearing's innovative design and premium construction make it an essential component in your power transmission system, providing exceptional reliability and consistency even under the most demanding circumstances.
Technical Specifications
- Item Radial Ball Bearing
- Unmounted Bearing Item Radial Ball Bearing
- Single Row/Double Row Single Row
- Seal/Shield Type Double Sealed
- Bore Dia. 0.7504 in
- Bore Tolerance +0/-0.0004 in
- Outside Dia. 1.7805 in
- Outside Dia. Tolerance +0/-0.0004 in
- Width 0.61 in
- Seal Material NBR
- ABEC Tolerance 1
- Dynamic Load Capacity 2,880 lb
- Static Load Capacity 1,480 lb
- Max. RPM 6,700 RPM
- Temp. Range -13 Degrees to 250 Degrees F
- Bearing Material Steel
- Cage Material Pressed Steel
- Lubrication Chevron SRI #2
- Industry Number 204BBAR
Manufacturer Details
- Manufacturer: NTN
- Condensed Mfg Number: 204BBAR
- MPN: 204BBAR
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: TW
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8482105048
- GDS Category Name: Radial and Deep Groove Ball Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171504
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Ball bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
