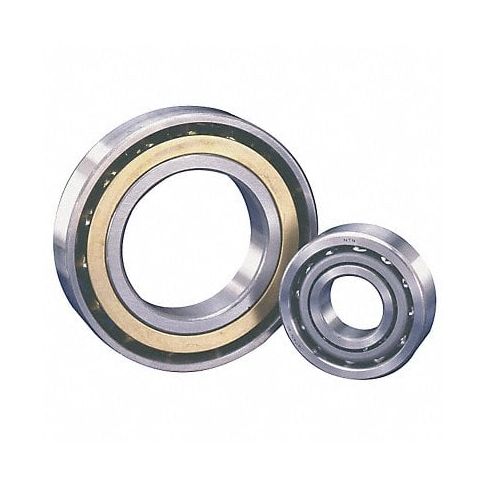

Angular Bearing 7330 40 Deg 150 mm Bore MPN:7330BG

The NTN® angular contact single-row radial ball bearings accommodate axial loads in 1 direction in addition to radial loads. Self-retaining unit with solid inner and outer rings and ball and cage assembly with machined brass cage. 40° contact angle. Flush-ground universal mount.

Technical Specifications

• Item Angular Contact Ball Bearing
• Contact Angle (Degree) 40
• Bore Dia. 150 mm
• Outside Dia. 320 mm
• Width 65 mm
• Max. RPM 2,000 RPM
• Dynamic Load Capacity (Lb.) 67,500
• Dynamic Load Capacity (N) 300,255
• Static Load Capacity (Lb.) 79,000
• Static Load Capacity (N) 351,410
• ABEC Tolerance 1
• Temp. Range (F) -13 to 250
• Cage Material Machined Brass

Manufacturer Details

• Manufacturer: NTN
• Condensed Mfg Number: 7330BG
• MPN: 7330BG

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: JP
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8482105028
• GDS Category Name: Angular Contact and Precision Ball Bearings
• GDS Family Name: Bearings
• GDS Segment Name: Power Transmission
• UNSPSC: 31171504
• UNSPSC Class ID: 15
• UNSPSC Commodity Name: Bearings
• UNSPSC Commodity ID: 04
• UNSPSC Commodity Name: Ball bearings
• UNSPSC Family ID: 17
• UNSPSC Family Name: Bearings and bushings and wheels and gears
• UNSPSC Segment ID: 31
• UNSPSC Segment Name: Manufacturing Components and Supplies

Shipping Details

• Not For Sale In: HI AK PR
