3 Bolt Flng Brg Radial 1 3/16in Bore MPN:ZUCFBL206-19

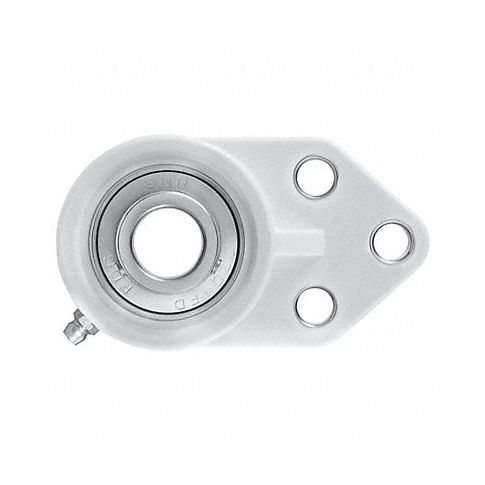

3 Bolt Flng Brg Radial 1 3/16in Bore
The 3 Bolt Flange Bearing is an excellent choice for applications that require radial bearings with three attachment bolts and a 1-3/16 inch bore diameter. This precision made bearing is durable and long-lasting due to its one-piece steel ball retainer, making it ideal for heavy-duty usage and high speed operations. It consists of heat-treated chromium steel balls that add resistance against wear and corrosion. With a versatile design, this radial bearing can be used in various industries such as automotive, agriculture, mining, and construction machinery, providing dependable and smooth performance. Overall, the 3 Bolt Flange Bearing offers exceptional quality, reliability, and efficiency to meet all your industrial needs.
⛟ Always get free shipping and support Veteran owned businesses by shopping our huge selection of Hardware Accessories including NTN item #ZUCFBL206-19.
Technical Specifications
- Item 3-Bolt Flange Bearing
- Mounted Bearing Item 3-Bolt Flange Bearing
- Bearing Insert Type Ball
- Bore Dia. 1 3/16 in
- Shaft Locking Type Set Screw
- Bearing Housing Material Type PBT
- Bearing Insert Material 52100 Chrome Steel
- Bolt Hole Center-to-Center 1 7/8 in
- Series Corrosion Resistant
- Bolt Size M10
- Overall Height 138.5 mm
- Overall Width 41.5 mm
- Overall Length 76 mm
- Bearing Lubrication Caltex FM EP or Equivalent USDA-H1 Grease
- Dynamic Load Capacity 3,750 lb
- Static Load Capacity 2,030 lb
- Temp. Range -4 Degrees to 230 Degrees F
- Finish None
Manufacturer Details
- Manufacturer: NTN
- Condensed Mfg Number: ZUCFBL20619
- MPN: ZUCFBL206-19
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Flange Mount Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171501
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Flanged bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 3, 2024 10:10pm UTC
Category: Bearings
