Pillow Block Bearing 3/4 in Bore Polymer MPN:ZUCPPL204-12

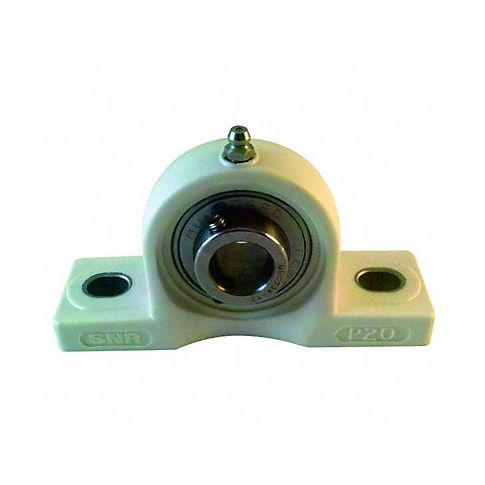

Pillow Block Bearing 3/4 in Bore Polymer
Pillow Block Bearings provide a simple solution for supporting loads or aligning shafts while allowing for easy mounting, dismounting, and adjustment. With a polyurethane casting on the outside and an iron sleeve, our Polymer pillow block bearing can handle medium-duty loads and support moderately heavy equipment. The 3/4 inch bore enables straightforward set up while minimizing deflection under high or shock load conditions making them ideal for industrial machinery applications like gearboxes, pumps and agricultural machines among others.
⛟ Always get free shipping and support Veteran owned businesses by shopping our huge selection of Hardware Accessories including NTN item #ZUCPPL204-12.
Technical Specifications
- Item Pillow Block Bearing
- Mounted Bearing Item Pillow Block Bearing
- Bearing Insert Type Ball
- Bore Dia. 3/4 in
- Bolt Hole Center-to-Center 95 mm
- Mounting Surface to Shaft Center 33.3 mm
- Bearing Housing Material Type PBT
- Shaft Locking Type Set Screw
- Bearing Insert Material 52100 Chrome Steel
- Series ZUCPPL
- Number of Bolts 2
- Bolt Size M8
- Overall Height 65 mm
- Overall Width 38 mm
- Overall Length 127 mm
- Bearing Lubrication Caltex FM EP or Equivalent USDA-H1 Grease
- Dynamic Load Capacity 2,450 lb
- Static Load Capacity 1,190 lb
- Temp. Range -2 Degrees to 248 Degrees F
- Finish None
Manufacturer Details
- Manufacturer: NTN
- Condensed Mfg Number: ZUCPPL20412
- MPN: ZUCPPL204-12
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483208040
- GDS Category Name: Pillow Block Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171504
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Ball bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 3, 2024 10:10pm UTC
Category: Bearings
