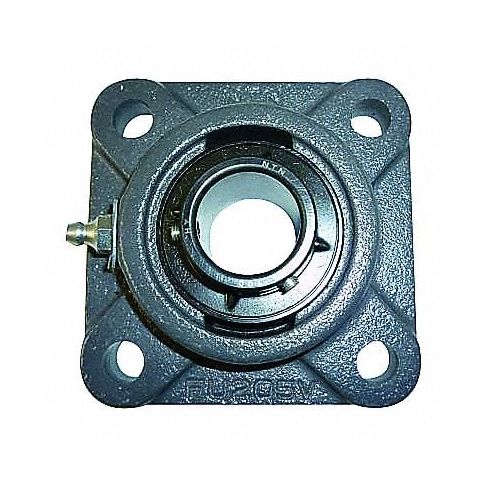

4 Bolt Flange Brg Radial Ball 35mm Bore MPN:UCFU-35

Mounted Ball Bearings
• Temp. range: -20° to 250°F
Feature cast-iron housings. Elastomeric seal with flinger preserves lubricant and keeps contaminants out. Ultra-Class units have solid base construction for optimum load and shock stability and black oxide coating for superior environmental protection.

Technical Specifications

• Item 4-Bolt Flange Bearing
• Mounted Bearing Item 4-Bolt Flange Bearing
• Bearing Insert Type Ball
• Bore Dia. 35 mm
• Shaft Locking Type Set Screw
• Bearing Housing Material Type Cast Iron
• Bearing Insert Material 52100 Chrome Steel
• Bolt Hole Center-to-Center 3 5/8 in
• Series UCFU
• Bolt Size 7/16 in
• Overall Height 1 53/64 in
• Overall Width 4 21/32 in
• Overall Length 4 21/32 in
• Bearing Lubrication Shell Alvania #3 or NLGI #3 Equivalent
• Dynamic Load Capacity 5,750 lb
• Static Load Capacity 3,450 lb
• Temp. Range -20 Degrees to 250 Degrees F
• Finish Black Oxide

Manufacturer Details

• Manufacturer: NTN
• Condensed Mfg Number: UCFU35
• MPN: UCFU-35

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: JP
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8483204040
• GDS Category Name: Flange Mount Bearings
• GDS Family Name: Bearings
• GDS Segment Name: Power Transmission
• UNSPSC: 31171504
• UNSPSC Class ID: 15
• UNSPSC Commodity Name: Bearings
• UNSPSC Commodity ID: 04
• UNSPSC Commodity Name: Ball bearings
• UNSPSC Family ID: 17
• UNSPSC Family Name: Bearings and bushings and wheels and gears
• UNSPSC Segment ID: 31
• UNSPSC Segment Name: Manufacturing Components and Supplies
