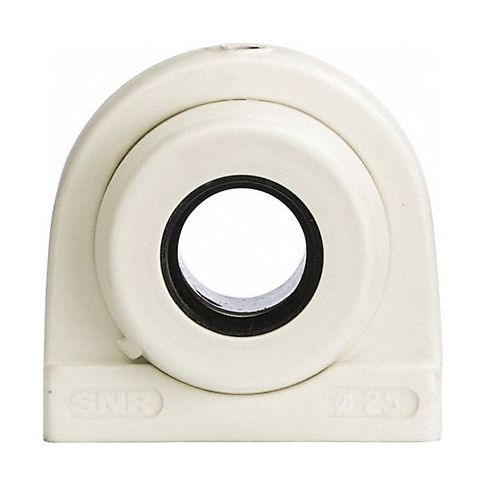

Pillow Block Brg 1 1/4 in Bore Polymer MPN:SUCTBL206-20C0FG1
SKU
226-CXO-406V71
Pillow Block Brg 1 1/4 in Bore Polymer
The ideal customers for this pillow block bearing are individuals looking for reliable mounting solutions and easy handling of heavy loads or equipment in diverse industries such as automotive, construction or agriculture its ease of use with minimal maintenance requirements make it appealing for professionals demanding consistent operation without interruption across various sectors.
Buy NTN item #SUCTBL206-20C0FG1 from our huge selection of Hardware Accessories to show your support for our 🗽 Patriotic Veteran-Owned Business.
Technical Specifications
- Item Pillow Block Tapped Base Bearing
- Mounted Bearing Item Pillow Block Tapped Base Bearing
- Bearing Insert Type Ball
- Bore Dia. 1 1/4 in
- Bolt Hole Center-to-Center 3 in
- Mounting Surface to Shaft Center 1 11/16 in
- Bearing Housing Material Type PBT
- Shaft Locking Type Set Screw
- Bearing Insert Material 440C Stainless Steel
- Series TBL-FG1
- Number of Bolts 2
- Bolt Size 7/16"-14 UNC
- Overall Height 3 5/16 in
- Overall Width 3 3/16 in
- Overall Length 4 in
- Bearing Lubrication FDA/USDA-H1 Solid Grease
- Dynamic Load Capacity 3,440 lb
- Static Load Capacity 2,590 lb
- Temp. Range 14 Degrees to 212 Degrees F
- Finish Unfinished
- Standards NSF H1 Registered
- Includes (2) Open End Caps
Manufacturer Details
- Manufacturer: NTN
- Condensed Mfg Number: SUCTBL20620C0FG1
- MPN: SUCTBL206-20C0FG1
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483208040
- GDS Category Name: Pillow Block Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171511
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 11
- UNSPSC Commodity Name: Pillow block bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on June 10, 2023 12:36am UTC
Category: Bearings
