Pillow Block Bearing 3/4 in Bore Polymer MPN:SUCTBL204-12C0FG1
SKU
226-CXO-406V65

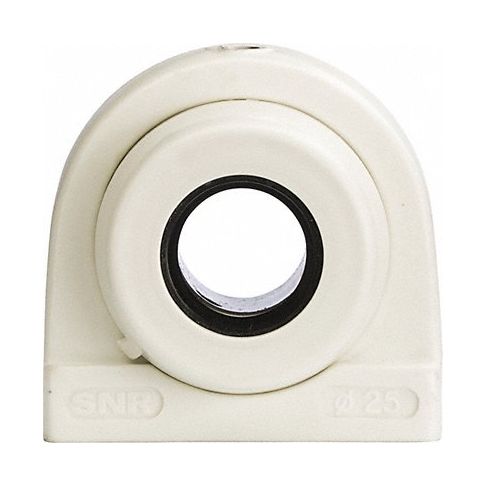

Pillow Block Bearing 3/4 in Bore Polymer
Pillow Block Bearing 3/4 in Bore Polymer is suitable for a wide range of industries, including agriculture, construction, and general machinery. This bearing is often used in power transmission systems to provide smooth and reliable rotation. The bearing's polymer material ensures corrosion resistance while its size makes it suitable for use in small spaces.
Buy NTN item #SUCTBL204-12C0FG1 to have a positive impact 📈 on our community of Service Disabled Veteran-Owned Business partners.
Technical Specifications
- Item Pillow Block Tapped Base Bearing
- Mounted Bearing Item Pillow Block Tapped Base Bearing
- Bearing Insert Type Ball
- Bore Dia. 3/4 in
- Bolt Hole Center-to-Center 2 in
- Mounting Surface to Shaft Center 1 5/16 in
- Bearing Housing Material Type PBT
- Shaft Locking Type Set Screw
- Bearing Insert Material 440C Stainless Steel
- Series TBL-FG1
- Number of Bolts 2
- Bolt Size 3/8"-16 UNC
- Overall Height 2 5/8 in
- Overall Width 2 3/8 in
- Overall Length 2 7/8 in
- Bearing Lubrication FDA/USDA-H1 Solid Grease
- Dynamic Load Capacity 2,270 lb
- Static Load Capacity 1,530 lb
- Temp. Range 14 Degrees to 212 Degrees F
- Finish Unfinished
- Standards NSF H1 Registered
- Includes (2) Open End Caps
Manufacturer Details
- Manufacturer: NTN
- Condensed Mfg Number: SUCTBL20412C0FG1
- MPN: SUCTBL204-12C0FG1
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483208040
- GDS Category Name: Pillow Block Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171511
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 11
- UNSPSC Commodity Name: Pillow block bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on June 10, 2023 12:42am UTC
Category: Bearings
