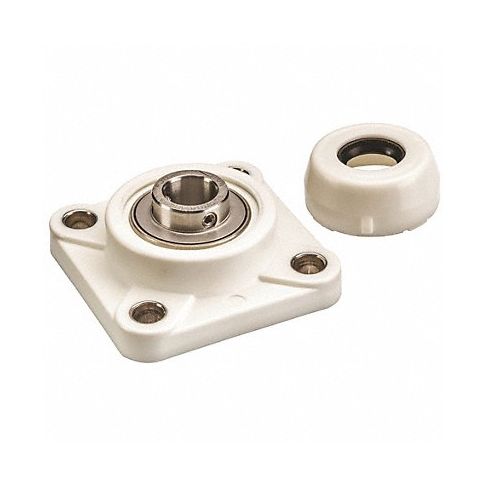

4 Bolt Flng Brg Radial Ball 1 1/2in Bore MPN:SUCFPL208-24C0FG1
SKU
226-CXO-406V09
4 Bolt Flng Brg Radial Ball 1 1/2in Bore
The four-bolt flanging ball radial bearings with a 1.5-inch bore are designed for heavy-duty applications such as machinery, agricultural equipment, or construction vehicles that require strong and reliable bearing assemblies capable of supporting large axial loads. With its sturdy and durable construction, the bearing can handle repetitive loading while reducing friction and minimizing wear to ensure smooth rotation in demanding environments where maximum load capacity is necessary. Due to their ability to support high loads and resist damage under harsh conditions, these bearings are popular among industries that operate heavy machinery such as construction, agriculture, and manufacturing plants.
Get NTN item #SUCFPL208-24C0FG1 from our selection of Hardware Accessories while supporting Veterans 🎖.
Technical Specifications
- Item 4-Bolt Flange Bearing
- Mounted Bearing Item 4-Bolt Flange Bearing
- Bearing Insert Type Ball
- Bore Dia. 1 1/2 in
- Shaft Locking Type Set Screw
- Bearing Housing Material Type PBT
- Bearing Insert Material 440C Stainless Steel
- Bolt Hole Center-to-Center 4 in
- Series FPL-FG1
- Bolt Size 1/2 in
- Overall Height 5 1/8 in
- Overall Width 2 13/16 in
- Overall Length 5 1/8 in
- Bearing Lubrication FDA/USDA-H1 Solid Grease
- Dynamic Load Capacity 5,130 lb
- Static Load Capacity 4,090 lb
- Temp. Range 14 Degrees to 212 Degrees F
- Finish Unfinished
- Standards NSF H1 Registered
- Includes (2) Open End Caps
Manufacturer Details
- Manufacturer: NTN
- Condensed Mfg Number: SUCFPL20824C0FG1
- MPN: SUCFPL208-24C0FG1
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483204040
- GDS Category Name: Flange Mount Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171501
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Flanged bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on June 10, 2023 12:33am UTC
Category: Bearings
