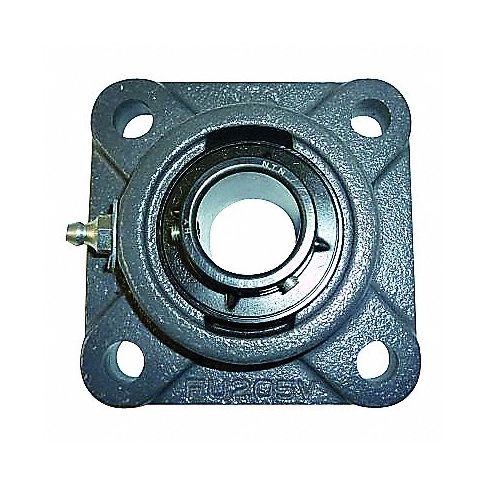

4 Bolt Flng Brg Radial Ball 1in Bore MPN:UCFU-1MFG1
Introducing the durable and versatile 4 Bolt Flange Bearing from Ntn! Ideal for heavy-duty industrial machinery, this robust bearing features a cast-iron housing, ensuring its long-lasting reliability. The elastomeric seal with flinger not only preserves the lubricant but also keeps out contaminants, minimizing wear and prolonging the bearing's life. Its ball insert type enhances smooth and efficient motion while the 1-inch bore diameter provides exceptional stability. The shaft locking type ensures secure installation, while the power transmission material of the housing is ideal for demanding applications. Use this versatile 4 Bolt Flange Bearing to optimize your industrial machinery's performance with less downtime and reduced maintenance costs.
Top product features:
- Cast-iron housing for durability and long-lasting reliability
- Ball insert type for smooth and efficient motion
- Elastomeric seal with flinger to preserve lubricant and keep out contaminants
Top product applications:
- Heavy-duty industrial machinery that requires high load capacity and durability
- High-precision equipment that needs smooth and efficient motion
- Outdoor machinery that operates in contaminated environments
Technical Specifications
- Item 4-Bolt Flange Bearing
- Mounted Bearing Item 4-Bolt Flange Bearing
- Bearing Insert Type Ball
- Bore Dia. 1 in
- Shaft Locking Type Set Screw
- Bearing Housing Material Type Cast Iron
- Bearing Insert Material 52100 Chrome Steel
- Bolt Hole Center-to-Center 2 3/4 in
- Series Standard Duty with Food Grade Solid Lubrication, Set Screw
- Bolt Size 7/16 in
- Overall Height 1 17/32 in
- Overall Width 3 25/32 in
- Overall Length 3 25/32 in
- Bearing Lubrication Shell Alvania #3 or NLGI #3 Equivalent
- Dynamic Load Capacity 3,150 lb
- Static Load Capacity 1,770 lb
- Temp. Range -10 Degrees to 95 Degrees C
- Finish Black Oxide
Manufacturer Details
- Manufacturer: NTN
- Condensed Mfg Number: UCFU1MFG1
- MPN: UCFU-1MFG1
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: JP
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483204040
- GDS Category Name: Flange Mount Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171501
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Flanged bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
