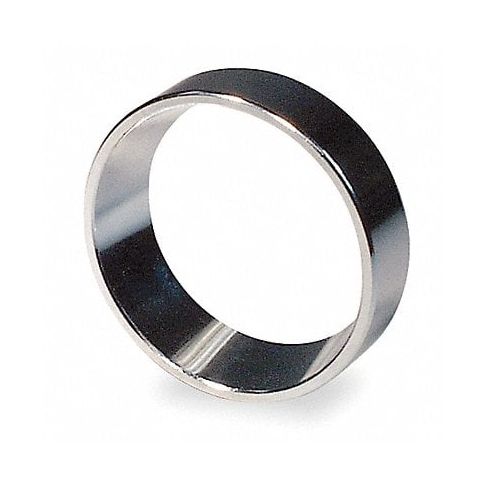

Taper Roller Bearing Cup 5 15/64in Bore MPN:HM218210

This tapered roller bearing cup is designed to help carry a maximum combination of radial and thrust loads simultaneously. Use in lower-speed applications where there is a high degree of thrust or radial load, shock loads, and/or alternating thrust and radial loads.

Technical Specifications

• Item Tapered Roller Bearing Cup
• Type Inch Series
• Outside Dia. (In.) 2.047 in
• Cup Width 0.5 in
• Max. House Fillet Radius (In.) 0.05 in
• Min. Housing Shoulder Dia. (In.) 1.77 in
• Max. Housing Shoulder Dia. (In.) 1.89 in
• Bearing Width (In.) 0.591 in
• Temp. Range (F) -20 Degrees to 250 Degrees F
• Material Case Carburized Steel
• For Use With 1YTY1 Taper Roller Bearing Cone
• Agency Compliance ABMA

Manufacturer Details

• Manufacturer: NTN
• Condensed Mfg Number: HM218210
• MPN: HM218210

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: US
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8482993050
• GDS Category Name: Tapered Roller Bearing Cups
• GDS Family Name: Bearings
• GDS Segment Name: Power Transmission
• UNSPSC: 31171516
• UNSPSC Class ID: 15
• UNSPSC Commodity Name: Bearings
• UNSPSC Commodity ID: 16
• UNSPSC Commodity Name: Tapered bearings
• UNSPSC Family ID: 17
• UNSPSC Family Name: Bearings and bushings and wheels and gears
• UNSPSC Segment ID: 31
• UNSPSC Segment Name: Manufacturing Components and Supplies

Shipping Details

• Not For Sale In: HI AK PR
