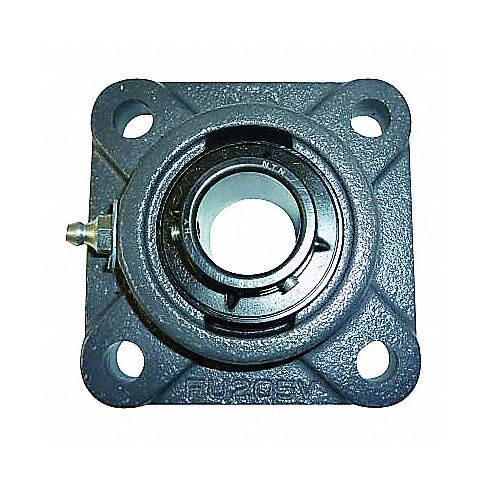

4 Bolt Flng Brg Radial 1 3/16in Bore MPN:UCFU-1.3/16M
The 4-bolt flange radial bearing features a single row of balls for smooth rolling contact, providing efficient and cost-effective operation while reducing noise levels. Its bore diameter of 1 3/16 makes it suitable for applications that require a specific size, and the four bolts facilitate mounting without the need for press fits or keyways, allowing easy installation and maintenance. This bearing is particularly useful in various industries such as agricultural, construction, and transportation equipment where radial load capacities need to be met while maintaining high precision, accuracy, and dependability. The flange also allows easy attachment to a shaft or housing via bolt-through design for added stability and strength during operation.
Technical Specifications
- Item 4-Bolt Flange Bearing
- Mounted Bearing Item 4-Bolt Flange Bearing
- Bearing Insert Type Ball
- Bore Dia. 1 3/16 in
- Shaft Locking Type Set Screw
- Bearing Housing Material Type Cast Iron
- Bearing Insert Material 52100 Chrome Steel
- Bolt Hole Center-to-Center 3 1/4 in
- Series Standard Duty
- Bolt Size 3/8 in
- Overall Height 1 21/32 in
- Overall Width 4 9/32 in
- Overall Length 4 9/32 in
- Bearing Lubrication Shell Alvania #3 or NLGI #3 Equivalent
- Dynamic Load Capacity 4,400 lb
- Static Load Capacity 2,540 lb
- Temp. Range -20 Degrees to 250 Degrees F
- Finish Painted
- Dimension A 1 5/16 in
- Dimension Ao 1 21/32 in
- Dimension B 1 1/2 in
- Dimension D 1 3/16 in
- Dimension J 3 1/4 in
- Dimension L 4 9/32 in
- Dimension N 29/64 in
- Dimension S 5/8 in
Manufacturer Details
- Manufacturer: NTN
- Condensed Mfg Number: UCFU1316M
- MPN: UCFU-1.3/16M
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: JP
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483204040
- GDS Category Name: Flange Mount Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171501
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Flanged bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
