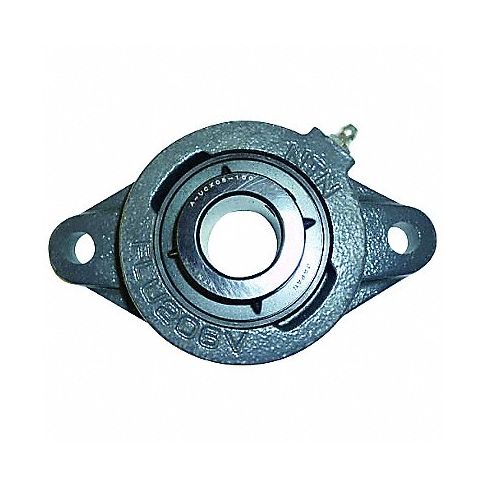

2 Bolt Flng Brg Radial 1 7/16in Bore MPN:UCFLUX-1.7/16M
2 Bolt Flng Brg Radial 1 7/16in Bore
The Toggle Clamp Horizontal in stainless steel features a handle with dimensions of 1.95 inches in length and 6.56 inches when fully extended, providing exceptional grip during tightening or loosening of fasteners securely in place for workpieces that demand stability. Its smooth, corrosion-resistant finish ensures reliable performance against harsh chemicals or humid conditions ideal for food processing facilities, manufacturing plants or marine industries requiring quick, efficient fastening solutions making it a popular option among professionals seeking to elevate precision and durability ensuring its standing as an indispensable component within vertical handle toggle clamp systems.
Mounted Ball Bearings• Temp. range: -20° to 250°FFeature cast-iron housings. Elastomeric seal with flinger preserves lubricant and keeps contaminants out. Ultra-Class units have solid base construction for optimum load and shock stability and black oxide coating for superior environmental protection.
Technical Specifications
- Item 2-Bolt Flange Bearing
- Mounted Bearing Item 2-Bolt Flange Bearing
- Bearing Insert Type Ball
- Bore Dia. 1 7/16 in
- Shaft Locking Type Set Screw
- Bearing Housing Material Type Cast Iron
- Bearing Insert Material 52100 Chrome Steel
- Bolt Hole Center-to-Center 5 21/32 in
- Series Medium Duty
- Bolt Size 7/16 in
- Overall Height 2 9/64 in
- Overall Width 4 1/8 in
- Overall Length 6 25/32 in
- Bearing Lubrication Shell Alvania #3 or NLGI #3 Equivalent
- Dynamic Load Capacity 6,550 lb
- Static Load Capacity 4,000 lb
- Temp. Range -20 Degrees to 250 Degrees F
- Finish Painted
- Dimension A 1 17/32 in
- Dimension Ao 2 9/64 in
- Dimension B 1 15/16 in
- Dimension D 1 1/16 in
- Dimension H 6 25/32 in
- Dimension J 5 21/32 in
- Dimension L 4 1/8 in
- Dimension N 33/64 in
- Dimension S 3/4 in
Manufacturer Details
- Manufacturer: NTN
- Condensed Mfg Number: UCFLUX1716M
- MPN: UCFLUX-1.7/16M
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: JP
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483204040
- GDS Category Name: Flange Mount Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171511
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 11
- UNSPSC Commodity Name: Pillow block bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 4, 2024 8:47am UTC
Category: Bearings
