Wafer Check Valve Iron 2-1/2 Flange MPN:21/2 71AHB3H
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXO-1RNP2

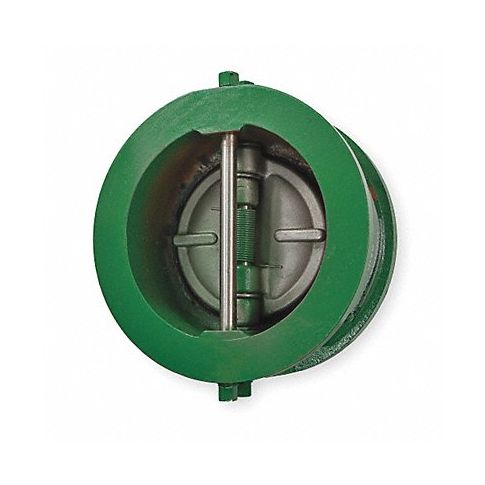

Wafer Check Valve Iron 2-1/2 Flange
The PSIParts Wafer Check Valve offers a cost-effective solution for preventing backflow in air and gas systems. This wafer design allows easy installation in-line with minimal disruption to existing pipework, while its sturdy iron construction ensures durability and long-lasting performance. The valve features a 2-1/2 inch flange connection, making it suitable for use with pipes of similar size, and its compact design makes it ideal for use in tight spaces or applications where space is limited. Perfect for industries such as HVAC, manufacturing, and plumbing, the PSIParts Wafer Check Valve provides a reliable solution to maintain the flow direction and protect equipment from reverse flow.
Sure Check™ • Max. temp.: 100°FClass 125 valves prevent surge and water hammer due to flow reversal; specially designed springs close discs before flow reversal can occur. With stainless steel springs and Buna N seal. Mount vertically or horizontally. Designed to fit ANSI flanges. Suitable for liquid and gas service applications.Meet ANSI standards; FM Approved.Heavy-Duty Check Valves • Max. pressure: 200 psi
Technical Specifications
- Item - Check Valves Check Valve
- Flow Design Single
- Mechanism and Body Design Inline Wafer
- Body Material - Valves Cast Iron
- Pipe or Tube Size 2 1/2 in
- Connection Type Flanged Wafer x Flanged Wafer
- Mounting Orientation Horizontal, Vertical
- Seal Material Buna-N
- Max. Temp. - Valves 100 Degrees F
- Max. Water Pressure - Valves 200 psi @ 150 Degrees F
- Max. Steam Pressure - Valves Not Rated
- Seat Material Buna-N
- Spring Material 316 Stainless Steel
- Application - Valves Process Piping
- Length 4 7/8 in
- Width 2 1/8 in
- Overall Height 4 7/8 in
- Standards ANSI, API, FM, UL
Manufacturer Details
- Manufacturer: Mueller
- Condensed Mfg Number: 21271AHB3H
- MPN: 21/2 71AHB3H
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8481302010
- GDS Category Name: Check Valves
- GDS Family Name: Check Valves and Backflow Preventers
- GDS Segment Name: Plumbing
- UNSPSC: 40141618
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Valves
- UNSPSC Commodity ID: 18
- UNSPSC Commodity Name: Ball check valves
- UNSPSC Family ID: 14
- UNSPSC Family Name: Fluid and gas distribution
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
Related ASINs: B0078RRK60
Product info last updated on April 4, 2024 11:49am UTC Category: Check Valves and Backflow Preventers
