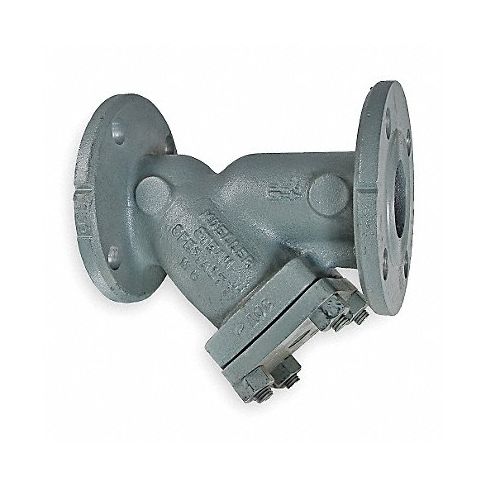

Y Strainer 8 1/4 H 0.062 Perf MPN:21/2 781 CS-N Flanged
Free Shipping
In Stock
Look no further for reliable strainer protection for your high-pressure and high-temperature steam applications! This Y Strainer from Mueller is specifically designed to safeguard your meters, pumps, traps, and valves against potential contaminants like dirt, debris, and scale buildup. The open area ratio of the strainer is greater than the pipe size it serves, ensuring minimal pressure drop while keeping your system flowing efficiently. Its heavy gauge reinforced screen is built to withstand the toughest conditions and offer long-lasting durability. Plus, its self-cleaning feature makes maintenance a breeze. Specifications include 2-1/2 inch pipe size, flanged connection type, cast carbon steel housing material, and a maximum pressure rating of 1010 psi @ 75Plumbing. Rely on Mueller's Y Strainer to keep your steam system running smoothly all year round!
Top product features:
- Open area ratio greater than pipe size
- Self-cleaning feature
- Heavy gauge reinforced screen
Top product applications:
- Protection of meters, pumps, traps, and valves from dirt, debris, and scale buildup in high-pressure steam systems
- Ensuring low pressure drop for efficient flow in high-temperature and high-pressure steam applications
- Long-lasting performance in tough conditions due to the heavy gauge reinforced screen
Technical Specifications
- Item Y Strainer
- Pipe Size 2 1/2 in
- Connection Type Flanged
- Housing Material Cast Carbon Steel
- Max. Pressure 1010 psi @ 750 Degrees F WSP, 1480 psi @ 100 Degrees F WOG
- Length 9 3/4 in
- Screen Area 0.06 sq in
- Screen Material 304 Stainless Steel
- Mesh 1/16 in
- Gasket Material Compressed Fiber
- Max. Fluid Temp. 100 Degrees F
- Blow-off Port 1 in
- Class 150
Manufacturer Details
- Manufacturer: Mueller
- Condensed Mfg Number: 212781CSNFlanged
- MPN: 21/2 781 CS-N Flanged
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8421290065
- GDS Category Name: Y Strainers
- GDS Family Name: Filtration
- GDS Segment Name: Plumbing
- UNSPSC: 40142501
- UNSPSC Class ID: 25
- UNSPSC Commodity Name: Traps and strainers
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Liquid strainers
- UNSPSC Family ID: 14
- UNSPSC Family Name: Fluid and gas distribution
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 4, 2024 11:49am UTC Category: Filtration
