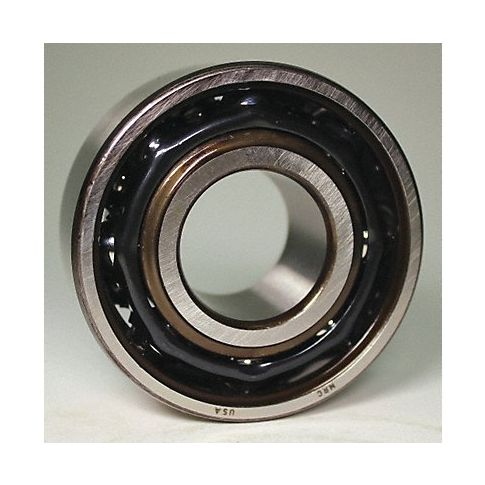

Angular Brg 3309/5309 30 Deg 45 mm Bore MPN:5309C
SKU
226-CXO-36NF99
Angular Brg 3309/5309 30 Deg 45 mm Bore
Experience precise motion control with our premium angular contact ball bearings! This top-of-the-line product offers double row construction, making it ideal for high-load and high-speed applications. The 30-degree contact angle provides exceptional carrying capacity, while the 45 mm bore ensures stability and precision. Use it in a wide range of industries, including agriculture, mining, construction, and more. With its durable design and advanced features, our angular contact ball bearing will revolutionize your motion control system!
Top product features:
- Double row construction for high load and high speed applications
- Precision engineering for exceptional carrying capacity
- Versatile bore diameter for stability and precision motion control
Top product applications:
- Heavy machinery and equipment requiring high speed and load capacity
- Construction and mining machinery for precise positioning and movement
- Robotics and automation systems where precision and durability are crucial
Buy MRC item #5309C from our huge selection of Hardware Accessories to show your support for our ♻ Socially Responsible Veteran-Owned Business.
Technical Specifications
- Item Angular Contact Ball Bearing
- Type Double Row
- Contact Angle (Degree) 30
- Bore Dia. 45 mm
- Outside Dia. 100 mm
- Width 39.69 mm
- Max. RPM 6,000 RPM
- Dynamic Load Capacity (Lb.) 16,400
- Dynamic Load Capacity (N) 72,800
- Static Load Capacity (Lb.) 11,900
- Static Load Capacity (N) 53,000
- ABEC Tolerance 1
- Temp. Range (F) 0 Degrees to 257 Degrees
- Cage Material Steel
Manufacturer Details
- Manufacturer: MRC
- Condensed Mfg Number: 5309C
- MPN: 5309C
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Angular Contact and Precision Ball Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171504
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Ball bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
