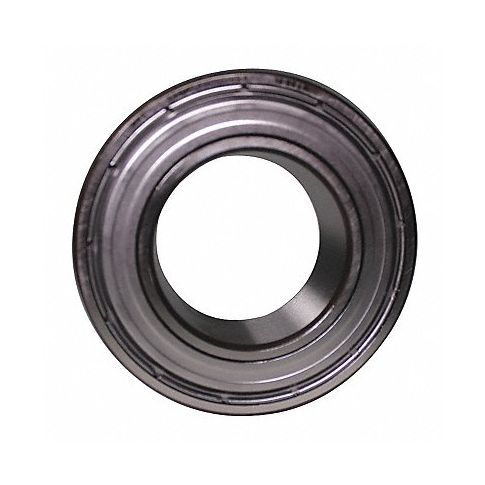

Angular Brg 3308/5308 30 Deg 40 mm Bore MPN:5308CFF
The Angular Contact Ball Bearing with Double Row Double Shield from MRC is an exceptional bearing for industrial equipment that requires high precision and durability. This 30-degree contact angle bearing has a bore diameter of 40mm, an outside diameter of 90mm, and provides double row protection to deliver superior performance in any environment. The 5308 Series Double Row Bearings are used for applications such as agriculture machinery, machine tools, textile equipment, robots and automated systems, gears, pumps and more. Its double shield seals prevents contamination from entering the bearing while allowing for easy maintenance. With its superior strength and precision, this Angular Contact Ball Bearing is perfect for any industry seeking reliable power transmission solutions.
Top product features:
- 30 degree contact angle for precision tracking and alignment.
- Double Row Double Shield seal for superior protection against contamination.
- Bore diameter of 40mm for versatile installation options.
Top product applications:
- Machine tools provides precision tracking and alignment for cutting tools in machinery.
- Textile equipment enhances efficiency by reducing friction in conveyor belts and other fabric handling systems.
- Agricultural machinery delivers durable, reliable power transmission to handle the rough terrain and conditions in farming operations.
Technical Specifications
- Item Angular Contact Ball Bearing
- Type Double Row Double Shield
- Contact Angle (Degree) 30
- Bore Dia. 40 mm
- Outside Dia. 90 mm
- Width 36.51 mm
- Max. RPM 6,700 RPM
- Dynamic Load Capacity (Lb.) 13,600
- Dynamic Load Capacity (N) 60,500
- Static Load Capacity (Lb.) 9,760
- Static Load Capacity (N) 43,000
- ABEC Tolerance 1
- Temp. Range (F) 0 Degrees to 257 Degrees
- Cage Material Steel
- Lubrication Exxon Polyrex
Manufacturer Details
- Manufacturer: MRC
- Condensed Mfg Number: 5308CFF
- MPN: 5308CFF
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Angular Contact and Precision Ball Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171504
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Ball bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 3, 2024 10:00pm UTC Category: Bearings
