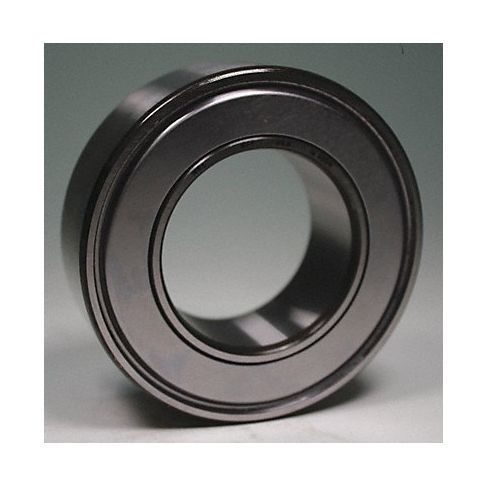

Angular Brg 3305/5305 30 Deg 25 mm Bore MPN:5305MFF

Technical Specifications

• Item Angular Contact Ball Bearing
• Type Double Row Double Shield
• Contact Angle (Degree) 30
• Bore Dia. 25 mm
• Outside Dia. 62 mm
• Width 25.4 mm
• Max. RPM 10,000 RPM
• Dynamic Load Capacity (Lb.) 7,670
• Dynamic Load Capacity (N) 34,100
• Static Load Capacity (Lb.) 6,860
• Static Load Capacity (N) 30,500
• ABEC Tolerance 1
• Temp. Range (F) 0 Degrees to 257 Degrees
• Cage Material Steel
• Lubrication Exxon Polyrex

Manufacturer Details

• Manufacturer: MRC
• Condensed Mfg Number: 5305MFF
• MPN: 5305MFF

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: ZZ
• CA Prop 65 Wht Label: N

Classification Details

• GDS Category Name: Angular Contact and Precision Ball Bearings
• GDS Family Name: Bearings
• GDS Segment Name: Power Transmission
• UNSPSC: 31171504
• UNSPSC Class ID: 15
• UNSPSC Commodity Name: Bearings
• UNSPSC Commodity ID: 04
• UNSPSC Commodity Name: Ball bearings
• UNSPSC Family ID: 17
• UNSPSC Family Name: Bearings and bushings and wheels and gears
• UNSPSC Segment ID: 31
• UNSPSC Segment Name: Manufacturing Components and Supplies

Shipping Details

• Not For Sale In: HI AK PR
