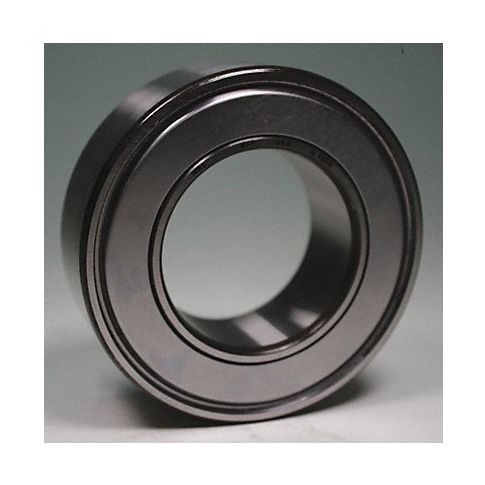

Angular Brg 3217/5217 30 Deg 85 mm Bore MPN:5217MFF

Technical Specifications

• Item Angular Contact Ball Bearing
• Type Double Row Double Shield
• Contact Angle (Degree) 30
• Bore Dia. 85 mm
• Outside Dia. 150 mm
• Width 49.21 mm
• Max. RPM 3,600 RPM
• Dynamic Load Capacity (Lb.) 32,000
• Dynamic Load Capacity (N) 142,000
• Static Load Capacity (Lb.) 39,600
• Static Load Capacity (N) 176,000
• ABEC Tolerance 1
• Temp. Range (F) 0 Degrees to 257 Degrees
• Cage Material Steel
• Lubrication Exxon Polyrex

Manufacturer Details

• Manufacturer: MRC
• Condensed Mfg Number: 5217MFF
• MPN: 5217MFF

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: ZZ
• CA Prop 65 Wht Label: N

Classification Details

• GDS Category Name: Angular Contact and Precision Ball Bearings
• GDS Family Name: Bearings
• GDS Segment Name: Power Transmission
• UNSPSC: 31171504
• UNSPSC Class ID: 15
• UNSPSC Commodity Name: Bearings
• UNSPSC Commodity ID: 04
• UNSPSC Commodity Name: Ball bearings
• UNSPSC Family ID: 17
• UNSPSC Family Name: Bearings and bushings and wheels and gears
• UNSPSC Segment ID: 31
• UNSPSC Segment Name: Manufacturing Components and Supplies

Shipping Details

• Not For Sale In: HI AK PR
