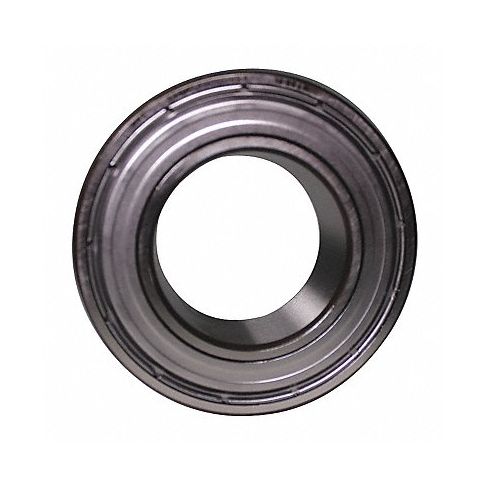

Angular Brg 3209/5209 30 Deg 45 mm Bore MPN:5209CFF
Introducing the Angular Brg 3209/5209 30 Deg 45 mm Bore from Mrc, the ultimate solution for improved performance in challenging environments. With a double row double shield design, this ball bearing offers maximum protection against dirt and dust, ensuring reliable operation in wet or harsh conditions. Its 30-degree contact angle provides smooth rolling motion while its wide inner ring maximizes load capacity, allowing it to handle heavy loads with ease. Ideal for a wide range of applications including industrial machinery, agricultural equipment, and transportation systems, this ball bearing is designed to deliver long-lasting performance and superior durability. Experience the difference that premium quality bearings can make and invest in the Angular Brg 3209/5209 30 Deg 45 mm Bore from Mrc today.
Top product features:
- Double row double shield design for maximum protection against dirt and dust
- Wide inner ring for maximum load capacity to handle heavy loads
- 30-degree contact angle for smooth rolling motion
Top product applications:
- Industrial machinery for heavy loads
- Agricultural equipment such as tractors and harvesters
- Transportation systems including automotive and railways
Technical Specifications
- Item Angular Contact Ball Bearing
- Type Double Row Double Shield
- Contact Angle (Degree) 30
- Bore Dia. 45 mm
- Outside Dia. 85 mm
- Width 30.16 mm
- Max. RPM 6,700 RPM
- Dynamic Load Capacity (Lb.) 11,000
- Dynamic Load Capacity (N) 48,800
- Static Load Capacity (Lb.) 8,770
- Static Load Capacity (N) 39,000
- ABEC Tolerance 1
- Temp. Range (F) 0 Degrees to 257 Degrees
- Cage Material Steel
- Lubrication Exxon Polyrex
Manufacturer Details
- Manufacturer: MRC
- Condensed Mfg Number: 5209CFF
- MPN: 5209CFF
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Angular Contact and Precision Ball Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171504
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Ball bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
