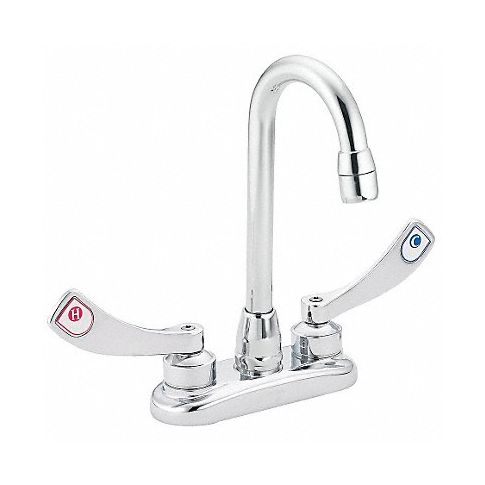

Gooseneck Chrome Moen M-Dura Cast Metal MPN:8278

Dual-wristblade-handle two-hole centerset deck-mount bar sink faucets have two wing-shaped handles that users pull toward or push away from themselves to start or stop the flow of water. Each handle is operated separately to control the hot and cold water supplies and adjust the water temperature. Also called paddle handles, wristblade handles can be operated with the wrist. Because they do not need to be gripped to push or pull the handle, wristblade handles can be used by some individuals with disabilities.

Two-hole centerset deck-mount bar sink faucets install onto sinks or counters that have two centered holes that are 4" apart when measured from center-of-hole to center-of-hole. They have a tall spout and a compact design, and are typically installed on small sinks in tight areas where food is prepared or beverages are served, such as bars and restaurants. They provide water for drinking, food preparation, or washing tasks.

Technical Specifications

• Item Gooseneck Bar Faucet
• Mounting Type - Faucet Deck
• Faucet Type Bar Faucet
• Number of Holes 2
• Faucet Installation Style Centerset
• Number of Handles 2
• Faucet Activation Manual
• Faucet Handle Type Wristblade
• Faucet Handle Material Metal
• Faucet Spout Shape Gooseneck
• Faucet Finish Chrome
• Plumbing Brand Moen
• Series M-Dura
• Faucet Body Material Cast Metal
• Flow Rate 1.5 gpm
• Flow Outlet Type - Faucet Aerated
• Ligature Resistant No
• Vandal Resistant Features Vandal Resistant Outlet, Vandal Resistant Screws
• ADA Compliance Yes
• Standards AB1953, ASME A112.18.1/CSA B125.1, NSF 61/9
• CEC Compliant CEC Compliant
• Water Inlet Connection Size 1/2 in
• Replacement Cartridge Mfr. Model Number 52000, 52001
• Replacement Cartridge Grainger Item Number 4NEF5, 4NEF6
• Includes Trim and Valve
• Valve Type - Faucets Hot/Cold Cartridge
• Manufacturers Warranty Length 5 yr Limited
• Spout Length 3 5/8 in
• Spout Height 9 1/2 in
• Spout Reach 3 5/8 in
• Max. Mounting Hole Center Distance 8 in
• Max. Installation Surface Thickness 1 1/2 in
• Temperature Control No
• Green Certification or Other Recognition California Energy Commission (CEC) Certified

Manufacturer Details

• Manufacturer: Moen
• Condensed Mfg Number: 8278
• MPN: 8278

Label Details

• Hazardous Material: N
• Green Material Flag: Y
• Country of Origin: US
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8481801030
• GDS Category Name: Kitchen and Bathroom Faucets
• GDS Family Name: Faucets Hose Bibs and Hydrants
• GDS Segment Name: Plumbing
• UNSPSC: 40141702
• UNSPSC Class ID: 17
• UNSPSC Commodity Name: Hardware and fittings
• UNSPSC Commodity ID: 02
• UNSPSC Commodity Name: Faucets
• UNSPSC Family ID: 14
• UNSPSC Family Name: Fluid and gas distribution
• UNSPSC Segment ID: 40
• UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components

Shipping Details

• Not For Sale In: CA HI AK PR
