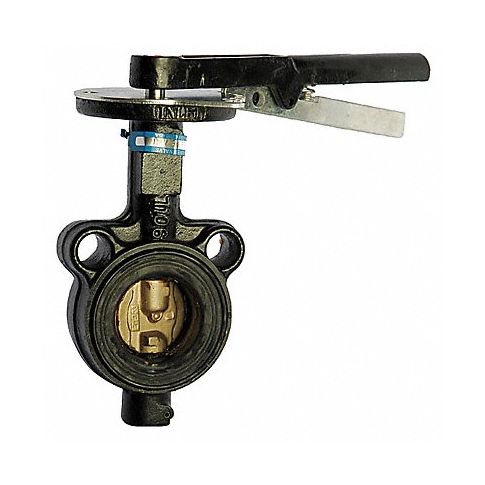

Butterfly Valve Wafer Size 2 In MPN:HW232B
SKU
226-CXO-5MPF6
Butterfly Valve Wafer Size 2 In
The wafer butterfly valve, size 2 has versatile applications in handling fluids in numerous industries. Its durable construction with materials such as stainless steel enables users to manage water, steam, air, and other aggressive chemicals without fear of leakage or damage from harsh conditions. With a simple operation via the gear-operated actuator or handle, this valve regulates fluids through modulating and isolation functions while ensuring low pressure drop and excellent flow control properties in systems where space is restricted due to its compact design. Ideally suited for applications within HVAC, chemical, pharmaceutical, food & beverage, pulp and paper industries.
Designed for commercial mechanical and industrial processes, including hot and cold domestic water, HVAC, condenser and chilled water, and compressed air and vacuum services. High tensile and yield strength with positive shutoff. Bidirectional service to 200 psi max.
Technical Specifications
- Item Butterfly Valve
- Style Wafer
- Body Material Ductile Iron
- Max. Water Pressure 200 psi
- Pipe Size 2 in
- Temp. Range 10 to 180 Degrees F
- Liner Material Buna
- Disc Material Nickel Plated Ductile Iron
- Handle Type Lever
- Number of Bolt Holes 2
- Bolt Circle Dia. 4 3/4 in
- Lug Dia. 5/8-11
- Standards MSS-SP25 And API-609, MSS-SP67
Manufacturer Details
- Manufacturer: Milwaukee
- Condensed Mfg Number: HW232B
- MPN: HW232B
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: Y
- CA Prop 65 Warning Msg Scenario: 7
Classification Details
- Harmonization Code: 8481803030
- GDS Category Name: Butterfly Valves
- GDS Family Name: Flow Control Valves
- GDS Segment Name: Plumbing
- UNSPSC: 40141620
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Valves
- UNSPSC Commodity ID: 20
- UNSPSC Commodity Name: Butterfly wafer pattern valves
- UNSPSC Family ID: 14
- UNSPSC Family Name: Fluid and gas distribution
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
Related ASINs: B007IBPEVY, B00CLUG6IC, B006X5EWYG
Product info last updated on April 3, 2024 10:15pm UTC Category: Flow Control Valves
