Butterfly Valve Lug Pipe Size 2 1/2 In MPN:ML234V
SKU
226-CXO-5MPD7

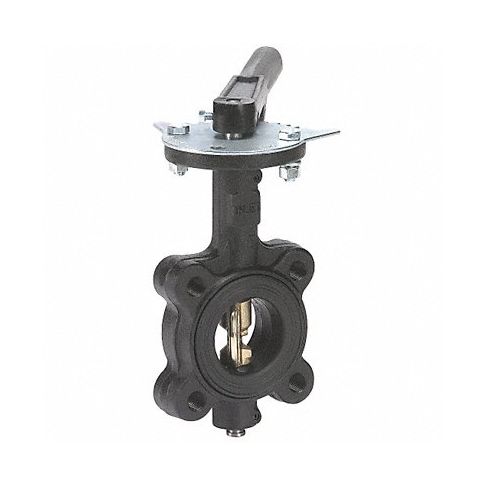

Butterfly Valve Lug Pipe Size 2 1/2 In
Butterfly Valve Lug Pipe Size 2 1/2 In is a plumbing component typically used to control the flow of water or air within a piping system by manually rotating its disc-shaped disc. Its primary use is in shutting off, regulating, or partially obstructing fluid flow, making it suitable for a variety of applications, including commercial and residential plumbing systems, HVAC systems, and industrial process control. It's usually made of materials such as bronze, brass, cast iron, and PVC to withstand the pressure and chemical properties of the fluid being handled.
Designed for commercial mechanical and industrial processes, including hot and cold domestic water, HVAC, condenser and chilled water, and compressed air and vacuum services. High tensile and yield strength with positive shutoff. Bidirectional service to 200 psi max.
Technical Specifications
- Item Butterfly Valve
- Style Lug
- Body Material Ductile Iron
- Max. Water Pressure 200 psi
- Pipe Size 2 1/2 in
- Temp. Range -20 to 300 Degrees F
- Liner Material Viton
- Disc Material 316 Stainless Steel
- Handle Type Lever
- Number of Bolt Holes 4
- Bolt Circle Dia. 5 1/2 in
- Lug Dia. 5/8-11
- Standards MSS-SP25 And API-609, MSS-SP67
Manufacturer Details
- Manufacturer: Milwaukee
- Condensed Mfg Number: ML234V
- MPN: ML234V
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: Y
- CA Prop 65 Warning Msg Scenario: 7
Classification Details
- Harmonization Code: 8481803030
- GDS Category Name: Butterfly Valves
- GDS Family Name: Flow Control Valves
- GDS Segment Name: Plumbing
- UNSPSC: 40141619
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Valves
- UNSPSC Commodity ID: 19
- UNSPSC Commodity Name: Butterfly lug pattern valves
- UNSPSC Family ID: 14
- UNSPSC Family Name: Fluid and gas distribution
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
