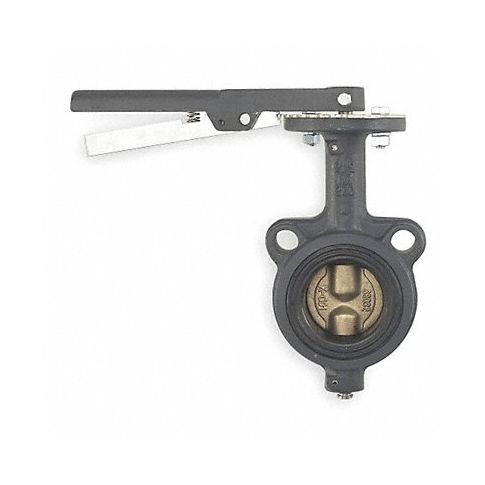

Butterfly Valve Wafer 2 1/2 In CI EPDM MPN:CW223E 2 1/2
SKU
226-CXO-1JBF3
Butterfly Valve Wafer 2 1/2 In CI EPDM
Keg shelving units, designed to hold up to eight half barrel kegs, provide durable and space-saving storage solutions for businesses that need to store large quantities of liquid beverages like craft breweries or restaurants. The units are typically constructed out of sturdy steel with welded support structures, allowing them to handle the weight of heavy loads without collapsing, ensuring the safety of customers' valuable inventory. The most common applications for these shelves include brewing facilities, restaurants, bars and pubs, events spaces, distributors or suppliers in the beverage industry and home bar designs catered to craft beer enthusiasts seeking organization within their collections.
Cast- and Ductile-Iron Butterfly Valves • Max. pressure: 200 psi EPDM liner temp. range: -30° to 250°F Buna liner temp. range: 10° to 180°F Viton® liner temp. range: -20° to 300°FDesigned for commercial mechanical and industrial processes, including hot and cold domestic water, HVAC, condenser and chilled water, and compressed air and vacuum services.Meet MSS-SP67, MSS-SP25, and API-609.Cast-IronHeavy-duty, low-torque valves are dead-end service rated at 150 psi; 200 psi for Buna and EPDM lug style.
Technical Specifications
- Item Butterfly Valve
- Style Wafer
- Body Material Cast Iron
- Max. Water Pressure 200 psi
- Pipe Size 2 1/2 in
- Temp. Range -30 to 250 Degrees F
- Liner Material EPDM
- Disc Material Aluminum/Bronze
- Handle Type Lever
- Number of Bolt Holes 2
- Bolt Circle Dia. 5 1/2 in
- Lug Dia. 5/8-11
- Standards MSS-SP25 And API-609, MSS-SP67
Manufacturer Details
- Manufacturer: Milwaukee
- Condensed Mfg Number: CW223E212
- MPN: CW223E 2 1/2
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8481803030
- GDS Category Name: Butterfly Valves
- GDS Family Name: Flow Control Valves
- GDS Segment Name: Plumbing
- UNSPSC: 40141620
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Valves
- UNSPSC Commodity ID: 20
- UNSPSC Commodity Name: Butterfly wafer pattern valves
- UNSPSC Family ID: 14
- UNSPSC Family Name: Fluid and gas distribution
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on June 10, 2023 12:44am UTC
Category: Flow Control Valves
