Fuse Block 61 to 100A K5/H 3 Pole MPN:61038

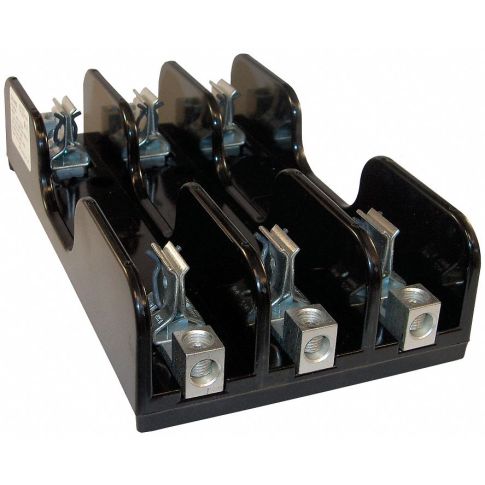

Fuse Block 61 to 100A K5/H 3 Pole
Upgrade your old HVAC system with Mersen's Fuse Block 61 to 100A K5/H 3 Pole - the ultimate solution for improved safety, reliability, and protection against electrical faults. Ideal for Class H or K fuses, these fuse blocks provide non-current limiting systems with small interrupting ratings or current limiting systems with high interrupting ratings. Featuring spring-reinforced clips that securely hold fuses in place, our fuse blocks maintain full electrical contact to ensure optimal performance. Use them for industrial applications requiring strong interrupting capacity and ultimate safety against arc flash events. Choose Mersen's fuse blocks for maximum reliability, ease of installation, and long-lasting durability.
Top product features:
- Spring-reinforced clips securely hold fuses in place for optimal electrical contact
- Compatible with UL Class H and K fuses for a wide range of applications
- Bolted or DIN rail mounting options for convenient installation and positioning
Top product applications:
- Upgrade outdated HVAC systems with robust overcurrent protection and interrupting ratings
- Protect industrial electrical circuits from damage due to excess current
- Secure fuses in place to maintain optimal electrical contact for continuous performance
These fuse blocks are compatible with UL Class H and K fuses that commonly provide overcurrent protection in older HVAC installations. They're used with Class H fuses for a noncurrent-limiting system with small interrupting ratings or Class K fuses for a current-limiting system with high interrupting ratings. Fuse blocks with spring-reinforced clips hold fuses tightly in place to maintain full electrical contact.UL Class and midget fuse blocks accept fuses sized and rated according to UL Class or midget specifications. They have an open top for access to fuses, clips or studs for securing fuses within the block, and terminals for connecting to the circuit. These fuse blocks are either bolted down or mounted on a DIN rail to hold them in place. They're commonly paired with fuse box covers to enclose the fuses and prevent accidental contact. They are nonindicating, so there's no visual signal when a fuse is blown.
Technical Specifications
- Item Fuse Block
- Fits Fuse Type Industrial
- Fuse UL Class H, K5
- Amp Range 61 to 100 A
- Number of Poles 3
- Voltage Rating 600V AC/DC
- For Fuse Size 7-7/8 in L x 1-5/16 in dia
- Compatible Fuse Series NLS, NOS, OTS, RES, RFS, RLS
- Series 2HKRFB
- Visual Indication Nonindicating
- Fuse Block Style Nonrejection
- Fuse Block Design Open
- Wire Range 6 to 2/0 AWG
- Mounting Style Bolt-Down
- Body Material Glass Filled Polycarbonate
- Connector Type Box Lug
- Height 2.48 in
- Width 5.8 in
- Length 10.08 in
- Spring Reinforced Clip Yes
- Standards CSA Certified, UL Listed
Manufacturer Details
- Manufacturer: Mersen
- Condensed Mfg Number: 61038
- MPN: 61038
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536908085
- GDS Category Name: Fuse Blocks
- GDS Family Name: Fuses
- GDS Segment Name: Electrical
- UNSPSC: 39121411
- UNSPSC Class ID: 14
- UNSPSC Commodity Name: Lugs connectors and terminals
- UNSPSC Commodity ID: 11
- UNSPSC Commodity Name: Fuse blocks
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
